SKU: LFTC20-RHP

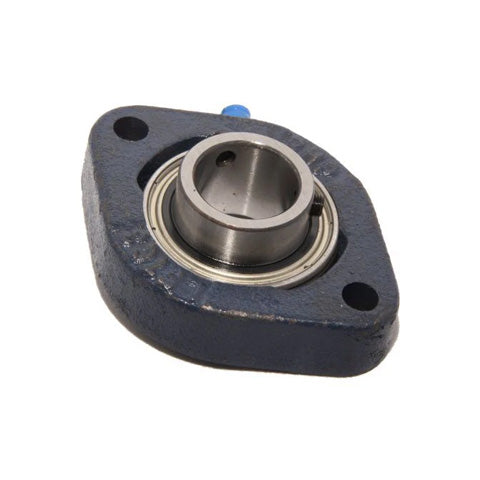

RHP LFTC20 Two Bolt Oval Cast Iron Flange Housing Bearing 20mm Bore
RHP LFTC20 Two Bolt Oval Cast Iron Flange Housing Bearing 20mm Bore
Regular price
$45.78
ex VAT
Regular price
Sale price
$45.78
ex VAT
In stock
Price Break
10+
$40.74
19+
$38.46
29+
$38.00
39+
$37.54
49+
$37.08
74+
$36.62
99+
$34.34
199+
$33.88
249+
$33.42
499+
$32.96
999+
$32.05
Description
Description
|
RHP LFTC Series 2 Bolt Oval Cast Iron Housing Units: Two bolt oval cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 20mm
- Style:
- LFTC
- Bolt Hole Centres:
- 71.5mm
Technical
Technical
| Bore | 20mm |
|---|---|
| L | 66.5mm |
| H | 90.5mm |
| J | 71.5mm |
| G | 8mm |
| A | 17mm |
| A1 | 27.76mm |
| B | 30.96mm |
| s | 12.75mm |
| d1 | 28.5mm |
| Dynamic load | 12800 N |
| Static load | 6650 N |
| Rec max speed | 6700 rpm |
| Weight | 0.4 kg |
| Insert | <a href="advanced_search_result.php?keywords=1020-20G+insonly">1020-20G Click Here</a> |
| Casting group | 2 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
