SKU: LFTC25-RHP

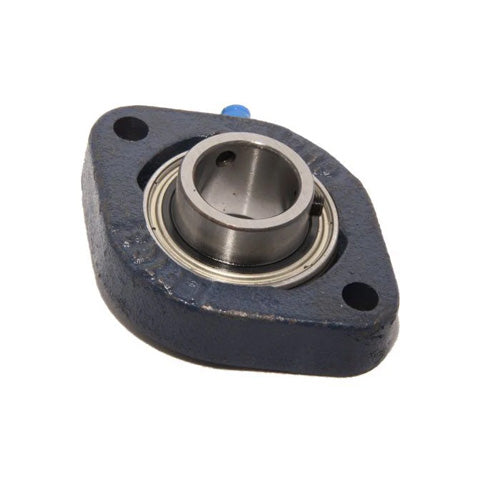

RHP LFTC25 Two Bolt Oval Cast Iron Flange Housing Bearing 25mm Bore
RHP LFTC25 Two Bolt Oval Cast Iron Flange Housing Bearing 25mm Bore
Regular price
$50.37
ex VAT
Regular price
Sale price
$50.37
ex VAT
In stock
Price Break
10+
$44.83
19+
$42.31
29+
$41.81
39+
$41.30
49+
$40.80
74+
$40.30
99+
$37.78
199+
$37.27
249+
$36.77
499+
$36.27
999+
$35.26
Description
Description
|
RHP LFTC Series 2 Bolt Oval Cast Iron Housing Units: Two bolt oval cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 25mm
- Style:
- LFTC
- Bolt Hole Centres:
- 76mm
Technical
Technical
| Bore | 25mm |
|---|---|
| L | 71mm |
| H | 96mm |
| J | 76mm |
| G | 8mm |
| A | 17.5mm |
| A1 | 29.24mm |
| B | 34.11mm |
| s | 14.32mm |
| d1 | 34.01mm |
| Dynamic load | 14000 N |
| Static load | 7880 N |
| Rec max speed | 6250 rpm |
| Weight | 0.5 kg |
| Insert | <a href="advanced_search_result.php?keywords=1025-25G+insonly">1025-25G Click Here</a> |
| Casting group | 3 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
