SKU: LFTC30-RHP

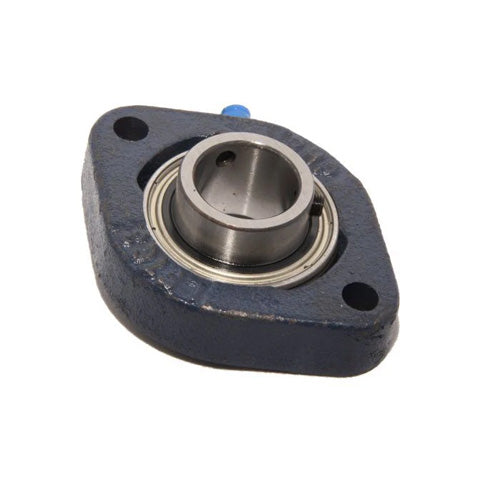

RHP LFTC30 Two Bolt Oval Cast Iron Flange Housing Bearing 30mm Bore
RHP LFTC30 Two Bolt Oval Cast Iron Flange Housing Bearing 30mm Bore
Regular price
$60.83
ex VAT
Regular price
Sale price
$60.83
ex VAT
In stock
Price Break
10+
$54.14
19+
$51.10
29+
$50.49
39+
$49.88
49+
$49.27
74+
$48.66
99+
$45.62
199+
$45.01
249+
$44.41
499+
$43.80
999+
$42.58
Description
Description
|
RHP LFTC Series 2 Bolt Oval Cast Iron Housing Units: Two bolt oval cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 30mm
- Style:
- LFTC
- Bolt Hole Centres:
- 90.5mm
Technical
Technical
| Bore | 30mm |
|---|---|
| L | 84mm |
| H | 112mm |
| J | 90.5mm |
| G | 10mm |
| A | 20.5mm |
| A1 | 33.62mm |
| B | 38.1mm |
| s | 15.93mm |
| d1 | 40mm |
| Dynamic load | 19500 N |
| Static load | 11300 N |
| Rec max speed | 5300 rpm |
| Weight | 0.8 kg |
| Insert | <a href="advanced_search_result.php?keywords=1030-30G+insonly">1030-30G Click Here</a> |
| Casting group | 4 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
