SKU: LFTC35A-RHP

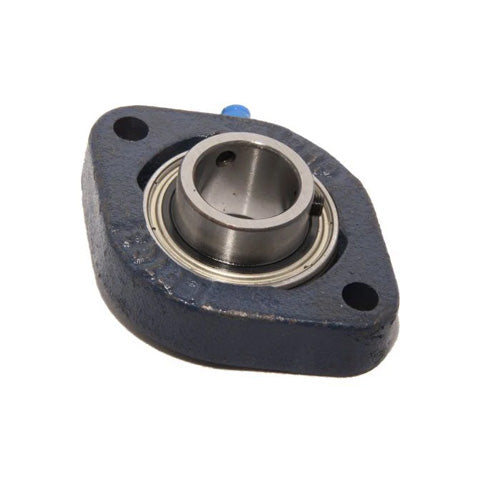

RHP LFTC35A Two Bolt Oval Cast Iron Flange Housing Bearing 35mm Bore
RHP LFTC35A Two Bolt Oval Cast Iron Flange Housing Bearing 35mm Bore
Regular price
$71.88
ex VAT
Regular price
Sale price
$71.88
ex VAT
In stock
Price Break
10+
$63.97
19+
$60.38
29+
$59.66
39+
$58.94
49+
$58.22
74+
$57.50
99+
$53.91
199+
$53.19
249+
$52.47
499+
$51.75
999+
$50.32
Couldn't load pickup availability
Description
Description
|
RHP LFTC A Series 2 Bolt Oval Cast Iron Housing Units: Two bolt oval cast iron bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 35mm
- Style:
- LFTC
- Bolt Hole Centres:
- 100mm
Technical
Technical
| Bore | 35mm |
|---|---|
| L | 93mm |
| H | 125mm |
| J | 100mm |
| G | 10mm |
| A | 22mm |
| A1 | 37.8mm |
| B1 | 34.9mm |
| s1 | 9.55mm |
| d1 | 46.69mm |
| Dynamic load | 25700 N |
| Static load | 15300 N |
| Rec max speed | 4500 rpm |
| Weight | 1.1 kg |
| Insert | <a href="advanced_search_result.php?keywords=1235-35AG+insonly">1235-35AG Click Here</a> |
| Casting group | 5 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
