SKU: LM.60.UU.EU

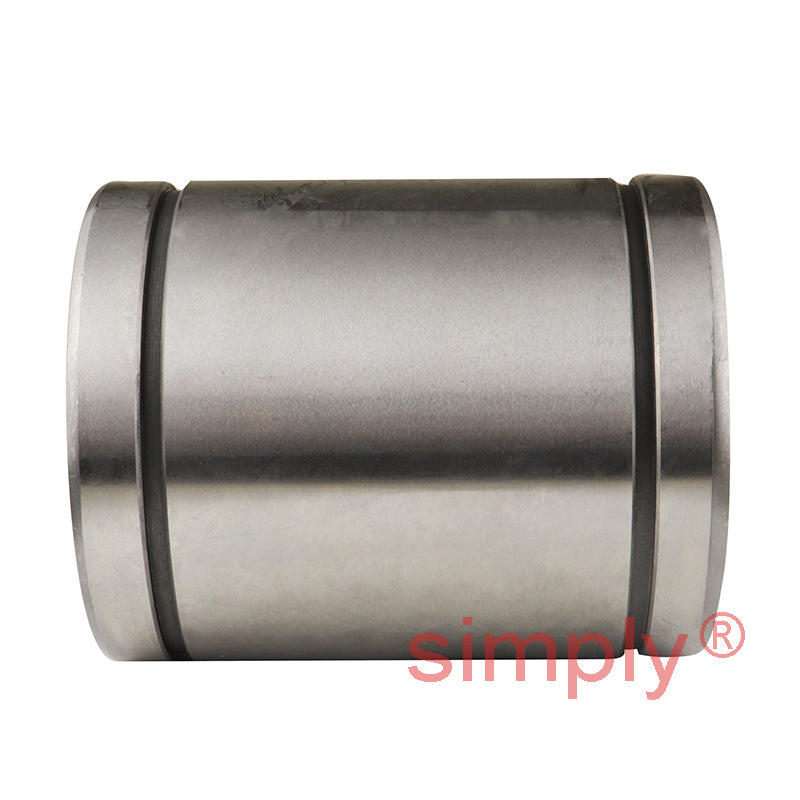

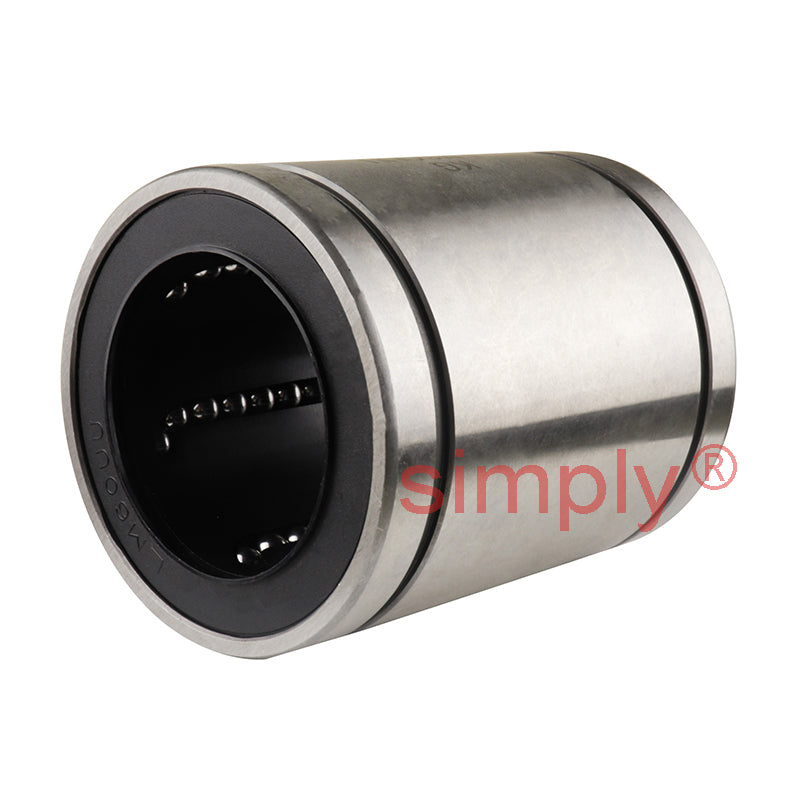

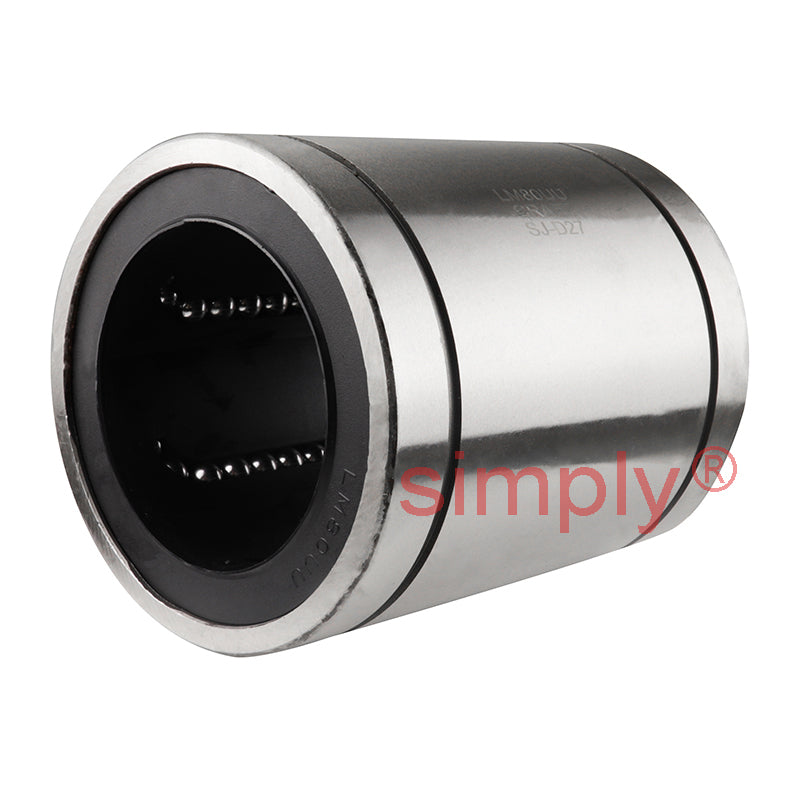

LM60UU Closed Linear Ball Bushing with Rubber Seals 60x90x110mm
Equivalent to: SM60GUU LBD60UU N60VUU L60UU SDM60YUU
In stock
Price Break
Description
LM Series Rubber Sealed Linear Ball Bushings: Manufactured with rubber seals these linear ball bushings are characterised by their smooth movement, high rigidity and low friction, they are easy to maintain or replace and have a good life span in service. They consist of steel outer housings with sets of balls running around their own tracks within the low friction polyamide / steel inner raceways. The UU series has the benefit of rubber seals to prevent the ingress of dust and moisture. |
Equivalent: SM60GUU LBD60UU N60VUU L60UU SDM60YUU
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 90mm
- Length:
- 110mm
Technical
| Inside Diameter dr | 60mm Tol + 0 to - 9µm |
|---|---|
| Outside Diameter D | 90mm Tol + 0 to - 20µm |
| Length L | 110mm Tol + 0 to - 400µm |
| W | 3.15mm |
| D1 | 86.5mm |
| Eccentricity | 17µm |
| Dynamic load C | 490 kgf |
| Static load C<sub>o</sub> | 830 kgf |
| Weight | 2000 g |
| B | 85mm Tol + 0 to - 400µm |
| Number of ball rows | 6 |
| Tolerances dr & D | Apply to closed type only |
