SKU: LM.E.30.UU.AJ.EU

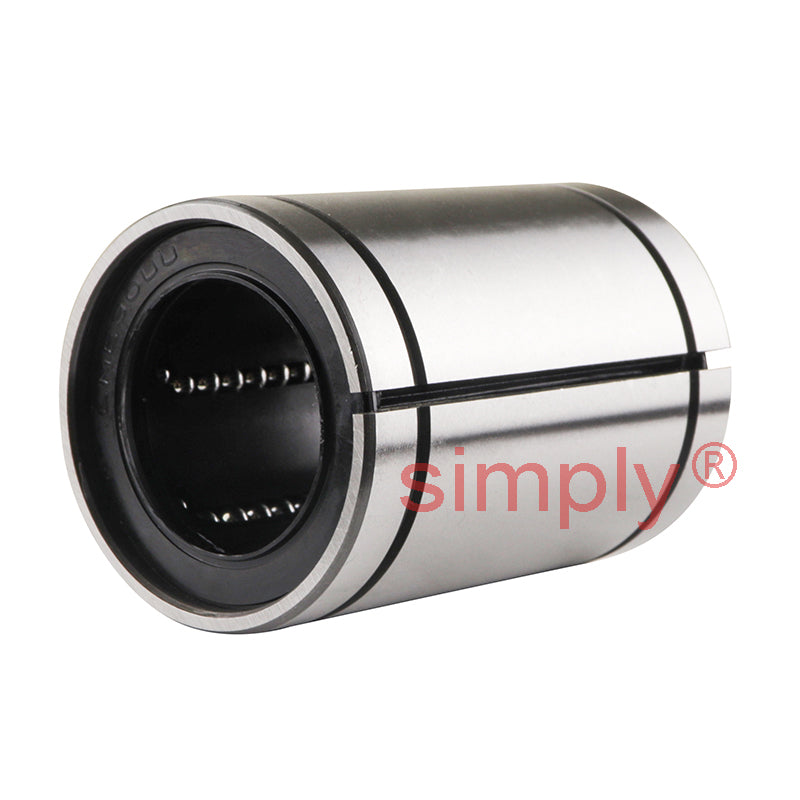

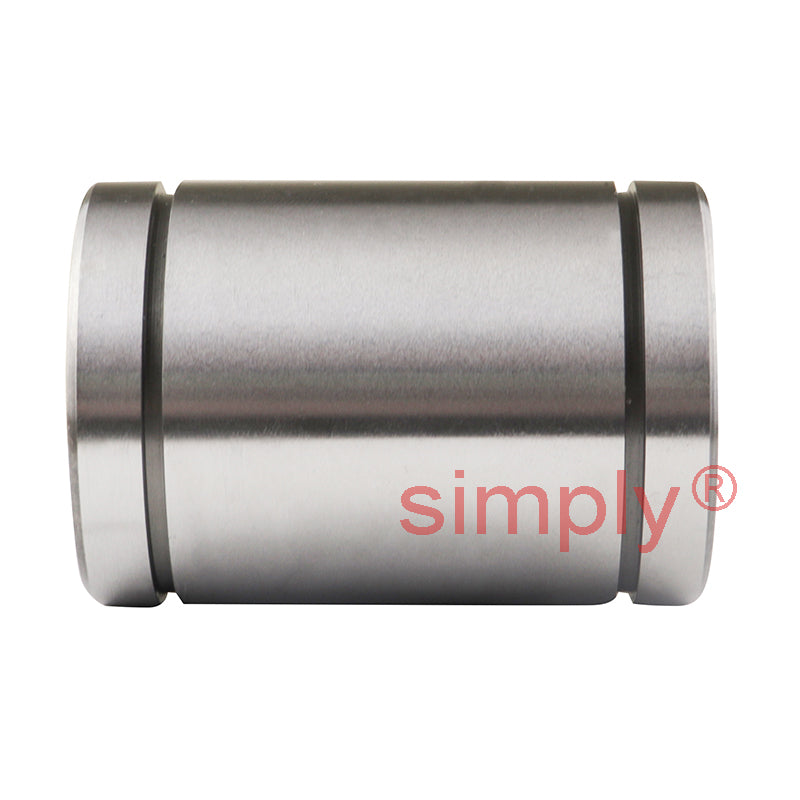

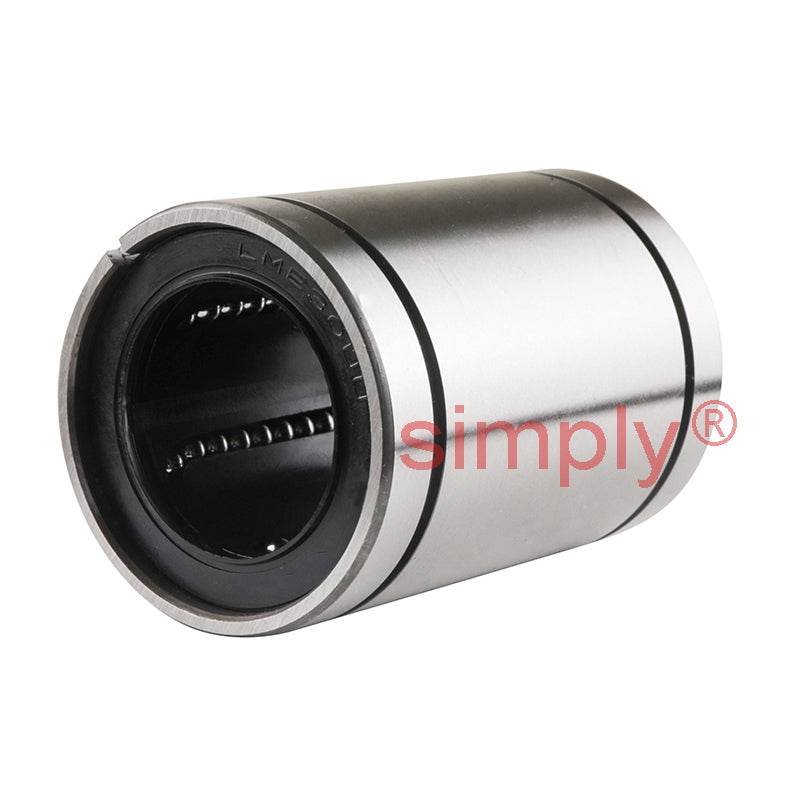

LME30UUAJ Adjustable Linear Ball Bushing with Rubber Seals 30x47x68mm
Equivalent to: KB30GUUAJ KBS3068PP MAM30ADJWW LBE30UUAJ
In stock
Price Break
Description
LME - AJ European Metric Series Rubber Sealed Linear Ball Bushings: Manufactured with rubber seals these linear ball bushings are characterised by their smooth movement, high rigidity and low friction, they are easy to maintain or replace and have a good life span in service. They consist of steel outer housings with sets of balls running around their own tracks within the low friction polyamide / steel inner raceways. The UU series has the benefit of rubber seals to prevent the ingress of dust and moisture. |
Equivalent: KB30GUUAJ KBS3068PP MAM30ADJWW LBE30UUAJ
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 47mm
- Length:
- 68mm
Technical
| Inside Diameter dr | 30mm Tol +11 to - 2µm |
|---|---|
| Outside Diameter D | 47mm Tol + 0 to - 11µm |
| Length L | 68mm Tol + 0 to - 300µm |
| W | 1.85mm |
| D1 | 44.5mm |
| B | 52.1mm |
| h | 2mm |
| Eccentricity | 15µm |
| Dynamic load C | 150 kgf |
| Static load C<sub>o</sub> | 280 kgf |
| Weight | 325 g |
| Number of ball rows | 6 |
| Tolerances dr & D | Apply to closed type only |
