SKU: LM.E.8.EU

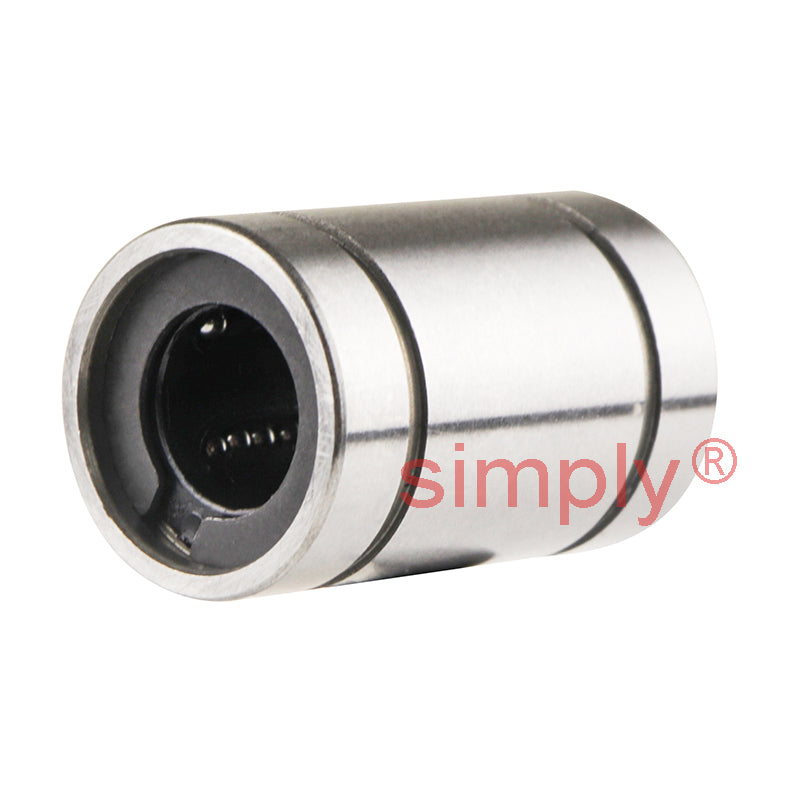

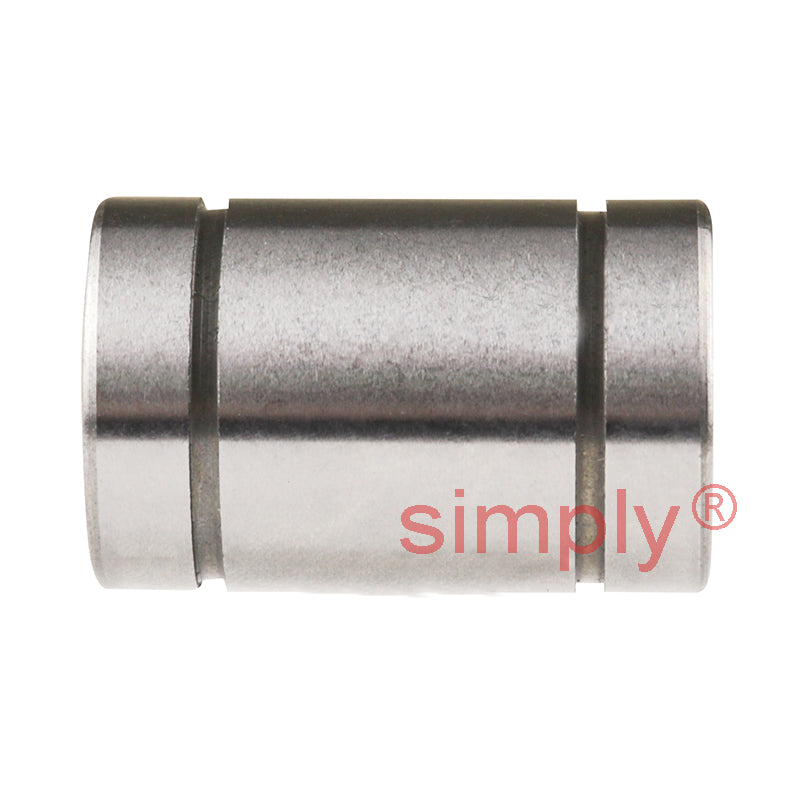

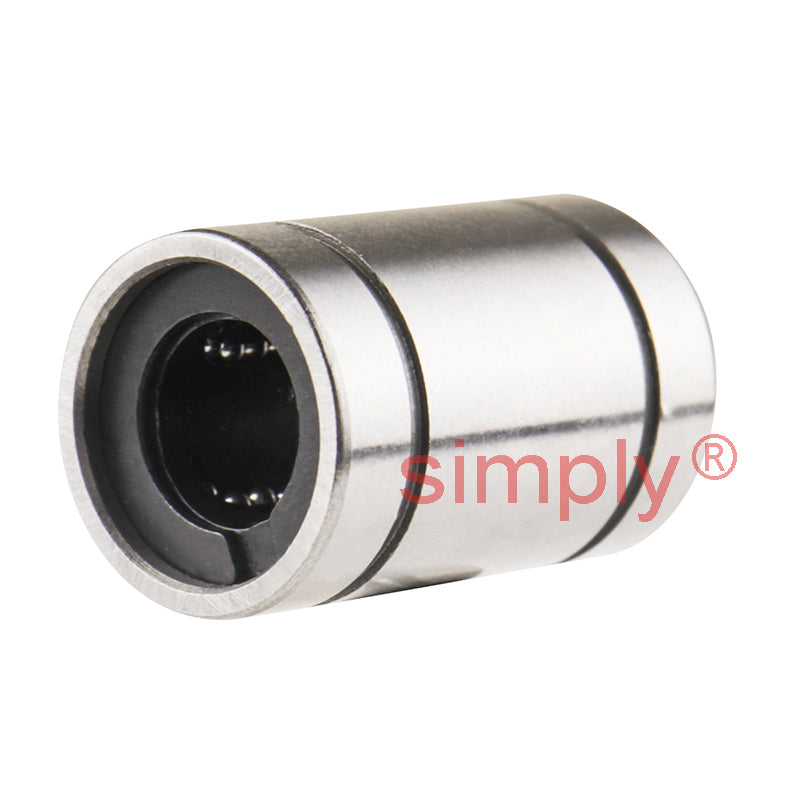

LME8 Closed Linear Ball Bushing 8x16x25mm
LME8 Closed Linear Ball Bushing 8x16x25mm
Regular price
$11.49
ex VAT
Regular price
Sale price
$11.49
ex VAT
Equivalent to: KB8G MAM08 LBE8
In stock
Price Break
10+
$10.23
19+
$9.65
29+
$9.54
39+
$9.42
49+
$9.31
74+
$9.19
99+
$8.62
199+
$8.50
249+
$8.39
499+
$8.27
999+
$8.04
Description
Description
LMB Imperial Series Linear Ball Bushings: These linear ball bushings are characterised by their smooth movement, high rigidity and low friction, they are easy to maintain or replace and have a good life span in service. They consist of steel outer housings with sets of balls running around their own tracks within the low friction polyamide / steel inner raceways.
Closed: LMB Closed types - the outer raceway is solid with no relief machined so clearances are preset, choose the adjustable type if you need to control clearances.
Benefits: Low friction, low maintenance, cost effective solution
Equivalent: KB8G MAM08 LBE8
Closed: LMB Closed types - the outer raceway is solid with no relief machined so clearances are preset, choose the adjustable type if you need to control clearances.
Benefits: Low friction, low maintenance, cost effective solution
Equivalent: KB8G MAM08 LBE8
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 8mm
- Outside Diameter:
- 16mm
- Length:
- 25mm
Technical
Technical
| Inside Diameter dr | 8mm Tol +8 to - 0µm |
|---|---|
| Outside Diameter D | 16mm Tol + 0 to - 200µm |
| Length L | 25mm Tol + 0 to - 200µm |
| W | 1.1mm |
| D1 | 15.2mm |
| B | 16.5mm |
| Eccentricity | 12µm |
| Dynamic load C | 14 kgf |
| Static load C<sub>o</sub> | 26 kgf |
| Weight | 20 g |
| Number of ball rows | 4 |
| Tolerances dr & D | Apply to closed type only |
