SKU: LMB.24.UU.OP.EU

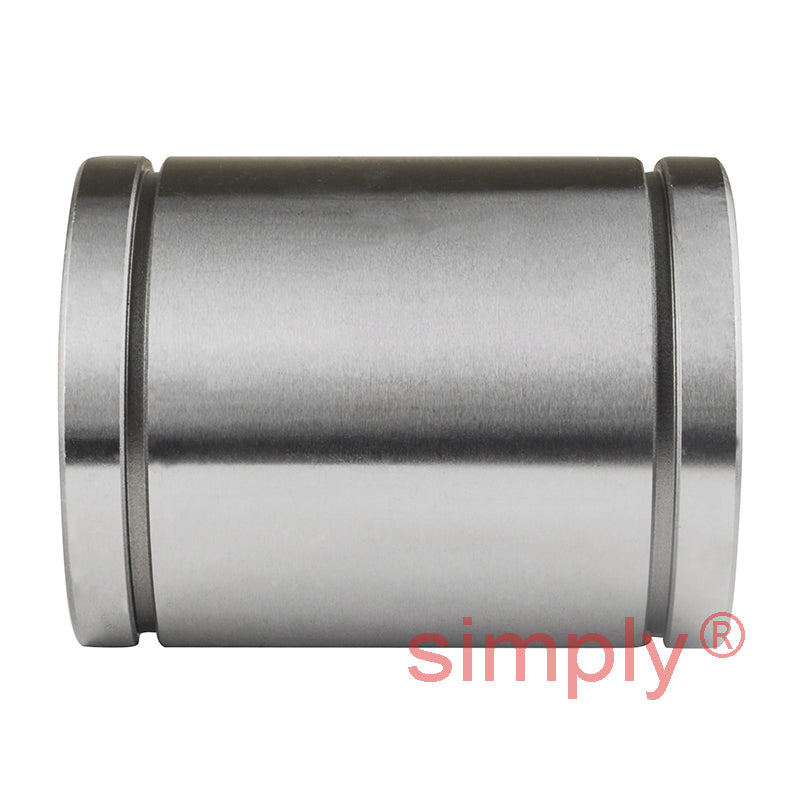

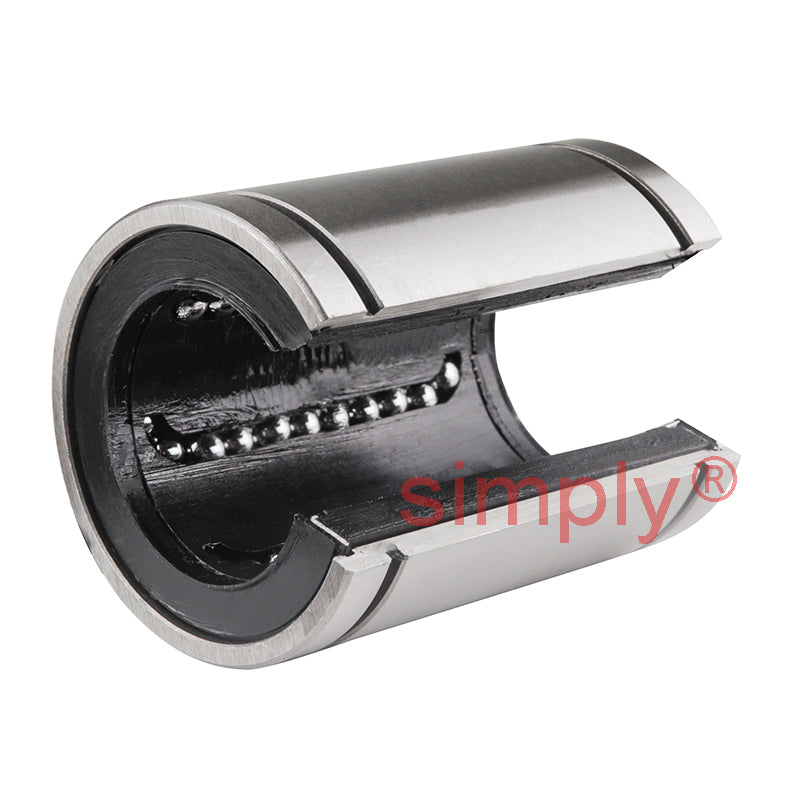

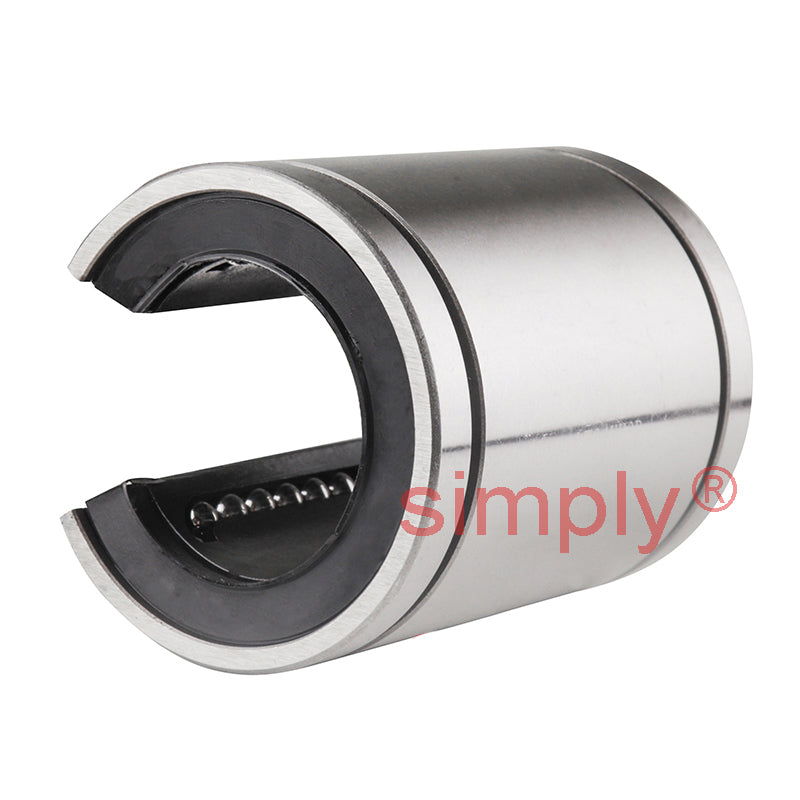

LMB24UUOP Imperial Open Linear Ball Bushing with Rubber Seals 1.5x2.375x3 inch
Low stock
Price Break
Description
LMB-OP Imperial Series Rubber Sealed Open Side Linear Ball Bushings: Manufactured with rubber seals these linear ball bushings are characterised by their smooth movement, high rigidity and low friction, they are easy to maintain or replace and have a good life span in service. They consist of steel outer housings with sets of balls running around their own tracks within the low friction polyamide / steel inner raceways. The UU series has the benefit of rubber seals to prevent the ingress of dust and moisture. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Outside Diameter:
- 60.33mm = 2.375 (2-3/8) inch
- Length:
- 76.2mm = 3 inch
Technical
| Inside Diameter dr | 1.5 inch Tol - 0 to + 8µm |
|---|---|
| Outside Diameter D | 2.375 inch Tol 2.375µm |
| Length L | 3 inch Tol - 0 to + 300µm |
| W | 0.0859 inch |
| D1 | 2.2389 inch |
| B | 2.4118 inch |
| h1 | 0.75 inch |
| Eccentricity | 12 to 20µm |
| Dynamic load C | 222 kgf |
| Static load C<sub>o</sub> | 410 kgf |
| Weight | 720 g |
| Number of ball rows | 5 |
| Tolerances dr & D | Apply to closed type only |
