SKU: LME-8UUAJ-EU

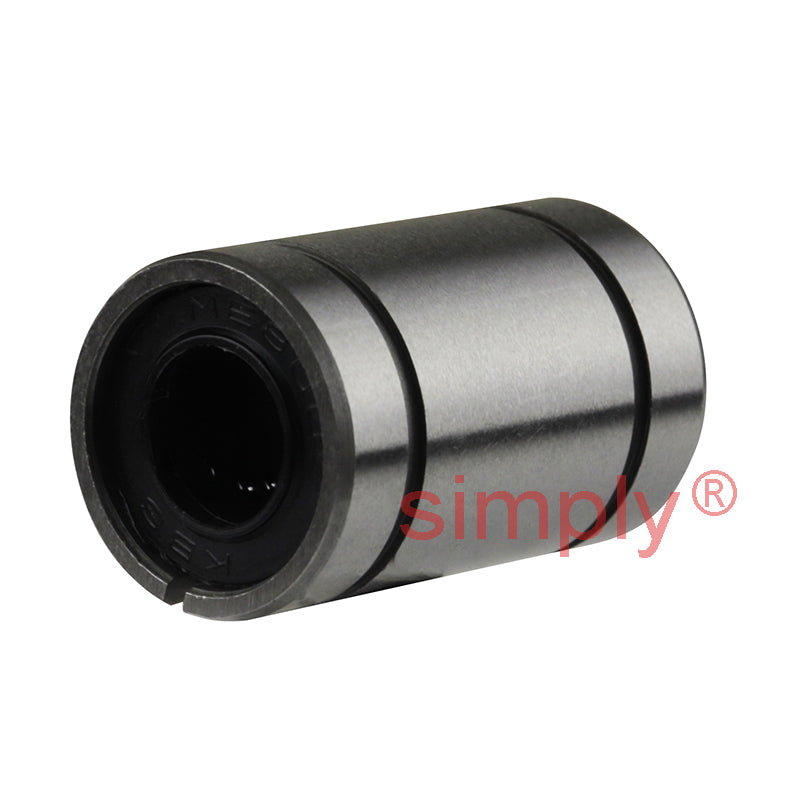

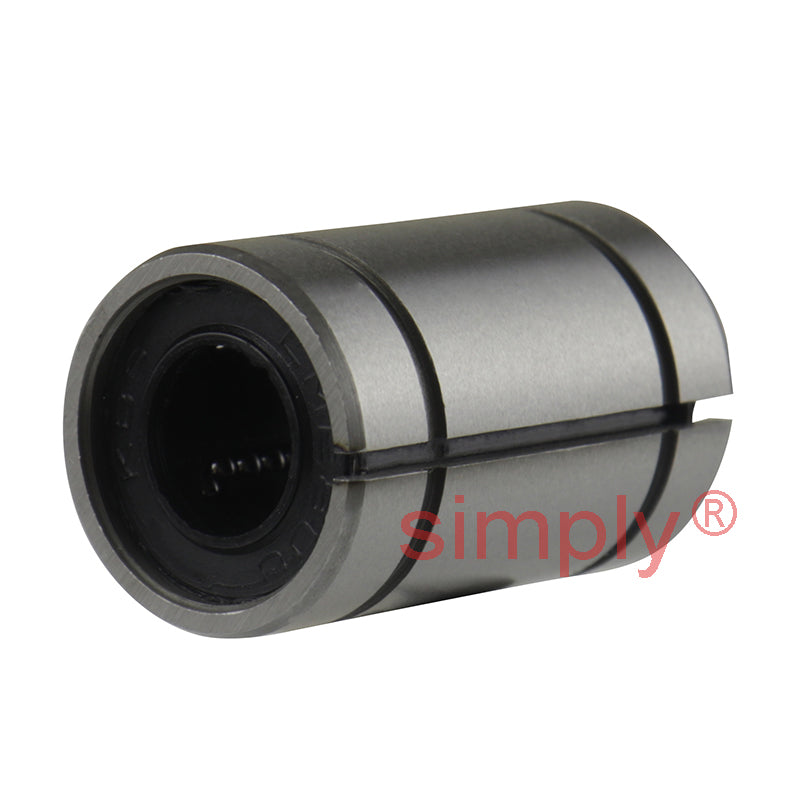

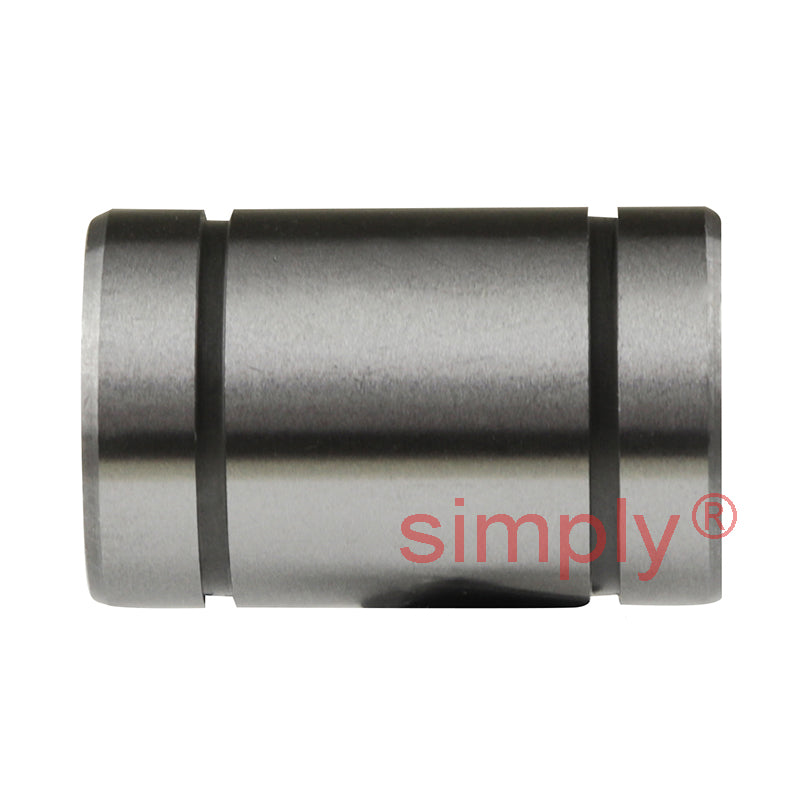

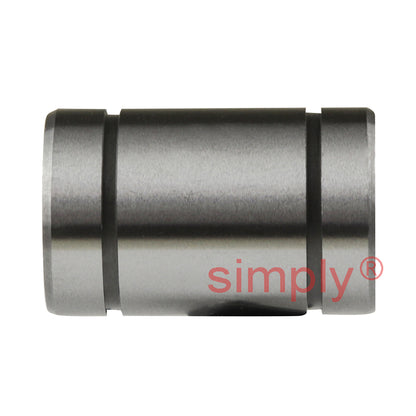

LME8UUAJ Adjustable Linear Ball Bushing with Rubber Seals 8x16x25mm
In stock
Price Break
Description
LME - AJ European Metric Series Rubber Sealed Linear Ball Bushings: Manufactured with rubber seals these linear ball bushings are characterised by their smooth movement, high rigidity and low friction, they are easy to maintain or replace and have a good life span in service. They consist of steel outer housings with sets of balls running around their own tracks within the low friction polyamide / steel inner raceways. The UU series has the benefit of rubber seals to prevent the ingress of dust and moisture. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 8mm
- Outside Diameter:
- 16mm
- Length:
- 25mm
Technical
| Inside Diameter dr | 8mm Tol +8 to - 0µm |
|---|---|
| Outside Diameter D | 16mm Tol + 0 to - 8µm |
| Length L | 25mm Tol + 0 to - 200µm |
| W | 1.1mm |
| D1 | 15.2mm |
| B | 16.5mm |
| h | -mm |
| Eccentricity | 12µm |
| Dynamic load C | 14 kgf |
| Static load C<sub>o</sub> | 26 kgf |
| Weight | 20 g |
| Number of ball rows | 4 |
| Tolerances dr & D | Apply to closed type only |
