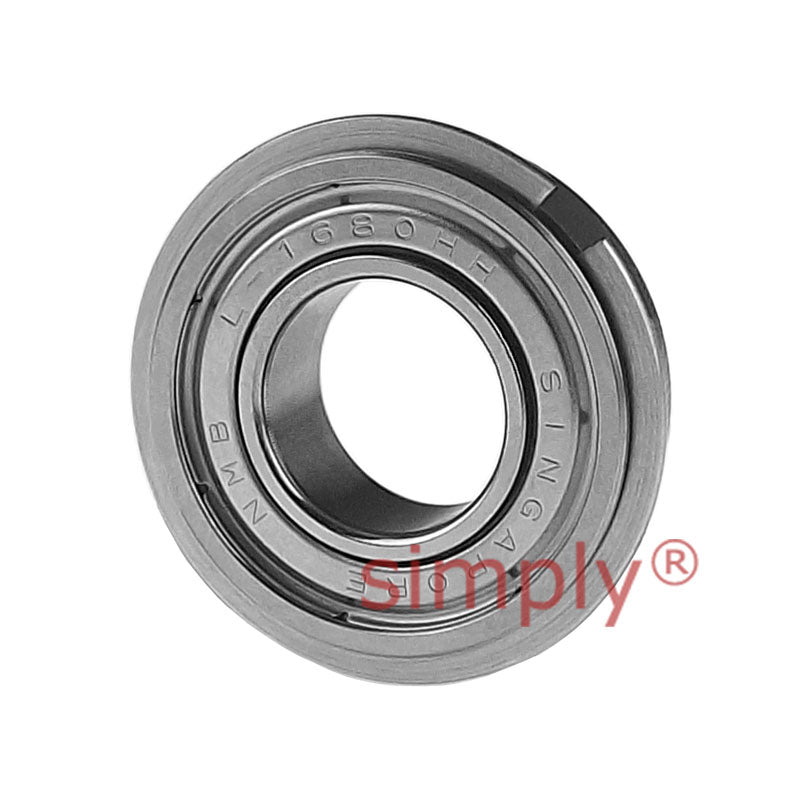

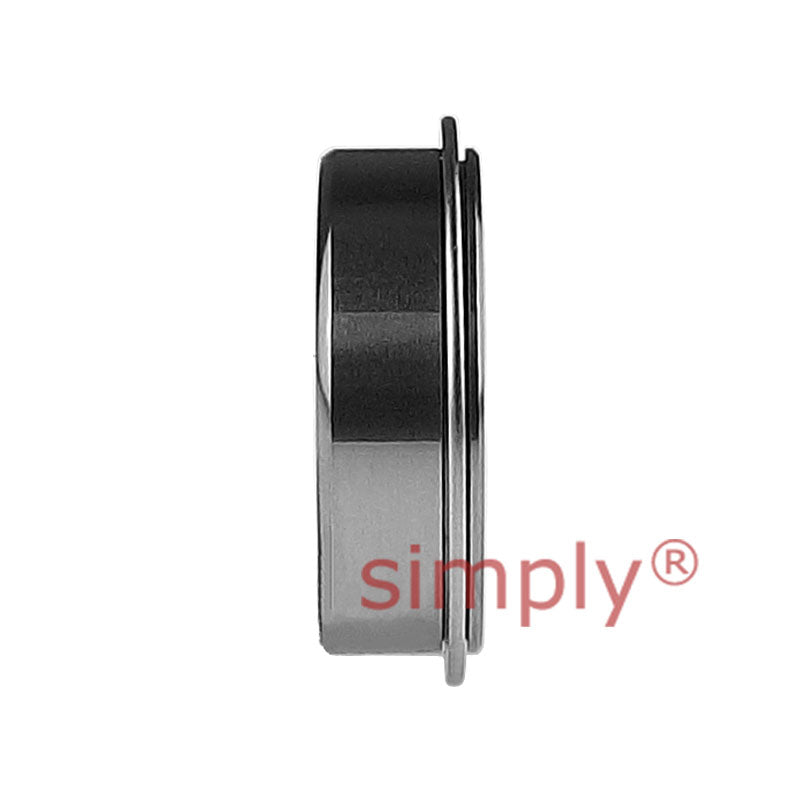

NMB Brand LNR1680HH Metal Shielded Deep Groove Ball Bearing 8x16x5mm with Snap Ring
NMB Brand LNR1680HH Metal Shielded Deep Groove Ball Bearing 8x16x5mm with Snap Ring
Regular price
$7.85
ex VAT
Regular price
Sale price
$7.85
ex VAT
In stock
Price Break
10+
$6.99
19+
$6.59
29+
$6.52
39+
$6.44
49+
$6.36
74+
$6.28
99+
$5.89
199+
$5.81
249+
$5.73
499+
$5.65
999+
$5.50
Description
Description
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing.
Shields can be removed for applications that don't require a shield or only require 1 shield.
Benefits: Provides light mechanical protection, limits moisture and dirt ingress, lubricated for life, cost-effective solution.
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 8mm
- Outside Diameter:
- 16mm
- Width:
- 5mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
Technical
| d | 8mm |
|---|---|
| D | 16mm |
| B | 5mm |
| r min | 0.2mm |
| Dynamic load C | 1.176 kN |
| Static load Co | 0.5684 kN |
| Max speed | 41000 rpm |
| Mass | 0.01 kg |
