SKU: LR608-2RSR-INA

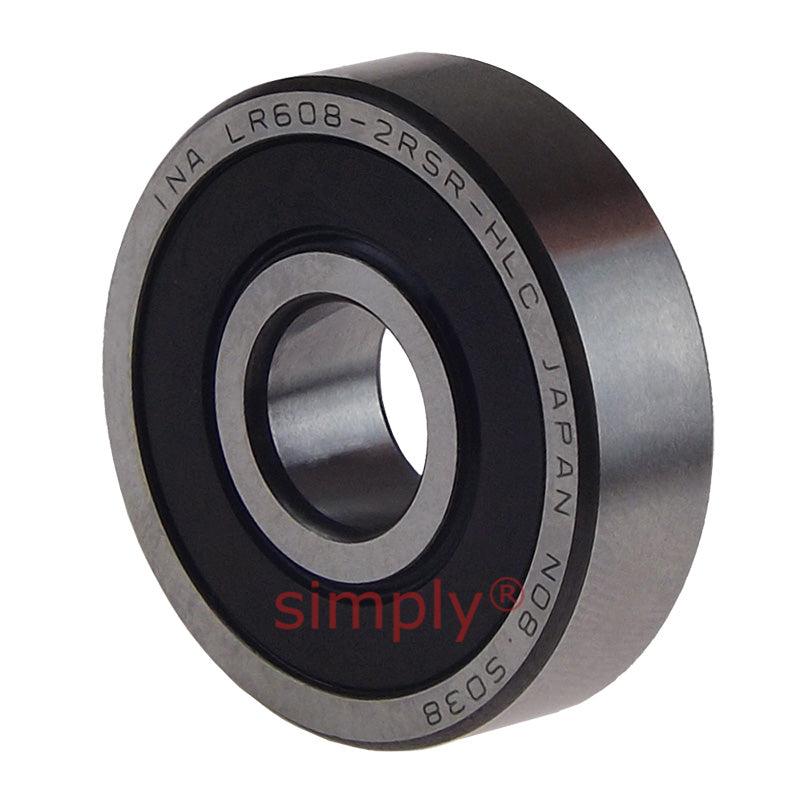

INA LR6082RSR Rubber Sealed Track Roller with Crowned Outer Race 8x24x7mm
INA LR6082RSR Rubber Sealed Track Roller with Crowned Outer Race 8x24x7mm
Regular price
$29.19
ex VAT
Regular price
Sale price
$29.19
ex VAT
Equivalent to: LR608-2RSR LR608-NPPU LR6082RS LR608NPPU
In stock
Price Break
10+
$25.98
19+
$24.52
29+
$24.23
39+
$23.94
49+
$23.64
74+
$23.35
99+
$21.89
199+
$21.60
249+
$21.31
499+
$21.02
999+
$20.43
Description
Description
Rubber Sealed Track Roller Bearing with a Spherical Outer: This range of self-retaining track roller bearings have a crowned outer raceways with thicker walls. They are able to take on high radial forces and can support axial force in both directions. This 2RSR range has lip seals on both sides giving radial sealing action.
Benefits: Maintenance free, capable of withstanding high radial and axial forces
Equivalent: LR608-2RSR LR608-NPPU LR6082RS LR608NPPU
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 8mm
- Outside Diameter:
- 24mm
- Width:
- 7mm
- Seals / Shields:
- Rubber Sealed
Technical
Technical
| d | 8mm |
|---|---|
| D | 24mm |
| C | 7mm |
| d<sub>2</sub> | 10mm |
| Crowning Radius (R) | 500mm |
| r<sub>min</sub> | 0.3mm |
| Mass (m) | 0.02kg |
| Dynamic Load (C<sub>r w</sub>) | 2950N |
| Static Load (C0<sub>r w</sub>) | 1240N |
| Fatigue Limit Load (C<sub>ur w</sub>) | 63N |
| Speed (n<sub>D G</sub>) | 19000 1/min |
