SKU: LSAG10C1S2

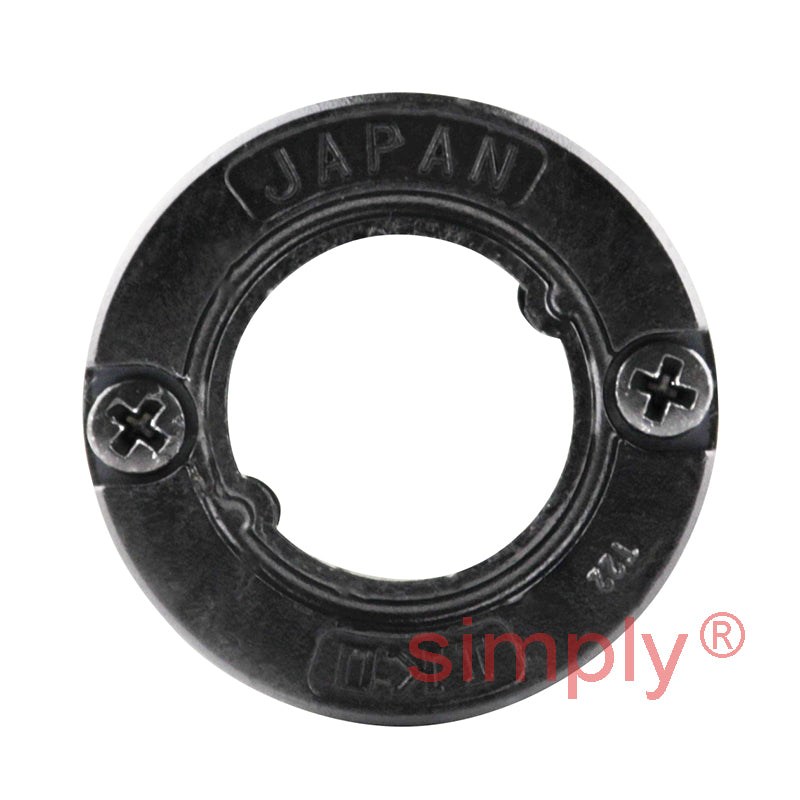

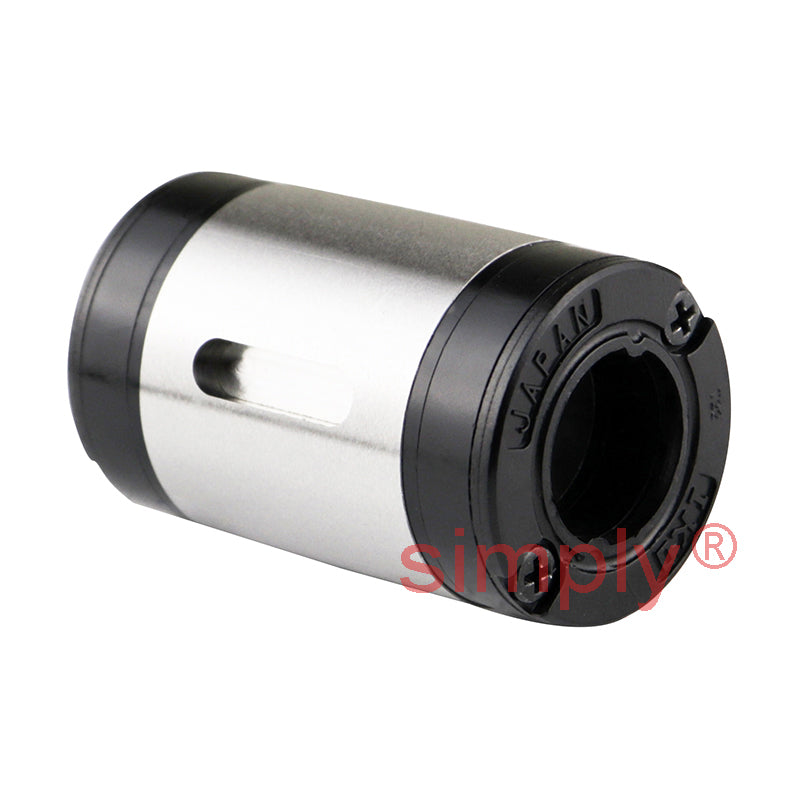

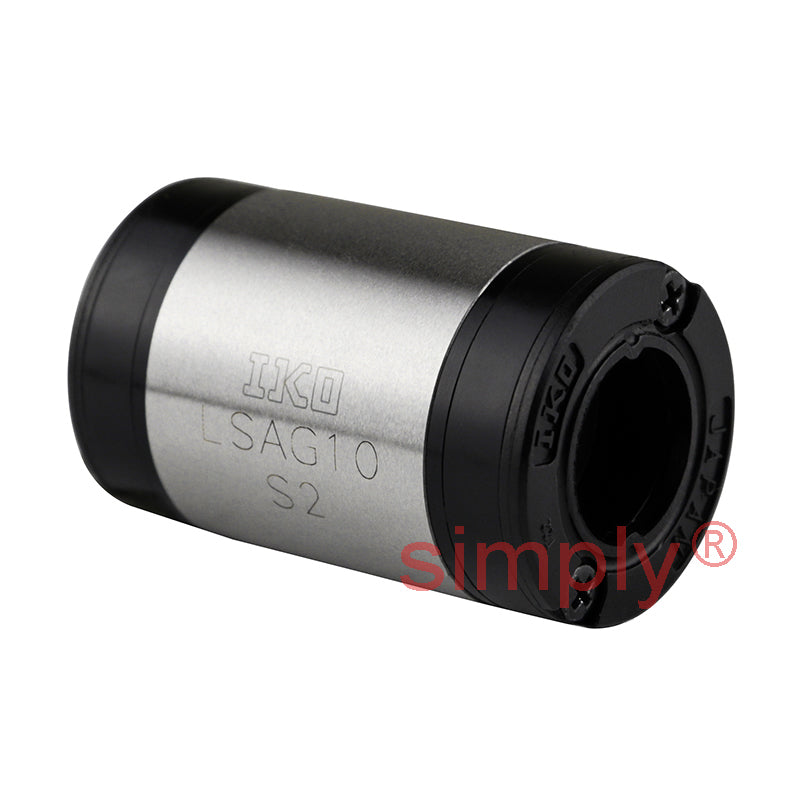

IKO LSAG10C1S2 Linear Ball Spline Bearing 10x19x30mm
IKO LSAG10C1S2 Linear Ball Spline Bearing 10x19x30mm
Regular price
$87.75
ex VAT
Regular price
Sale price
$87.75
ex VAT
In stock
Price Break
10+
$78.10
19+
$73.71
29+
$72.83
39+
$71.96
49+
$71.08
74+
$70.20
99+
$65.81
199+
$64.94
249+
$64.06
499+
$63.18
999+
$61.43
Description
Description

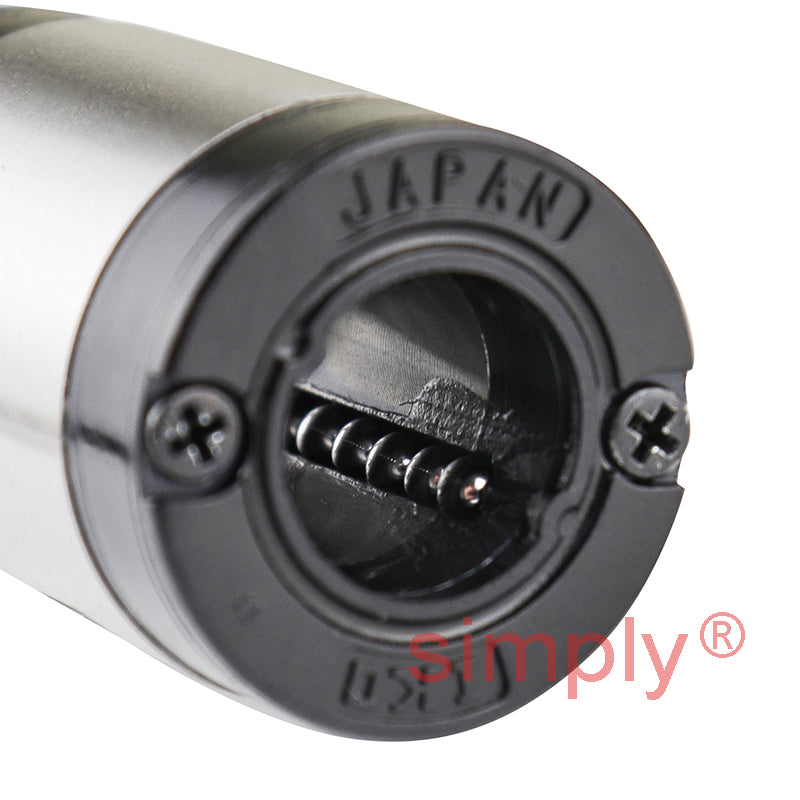

Linear Ball Spline Bearings These bearings are capable of achieving endless linear motion of an external cylinder along a spline shaft. The steel balls make contact with the spline grooves and are capable of radial loads and rotating torque. These bearings are used for applications which require linear motion along a shaft while also providing rotating torque around a shaft.
Benefits: Interchangeable, compact design with high rigidity, high positioning accuracy, smooth motion with low friction.
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 19mm
- Length:
- 30mm
Technical
Technical

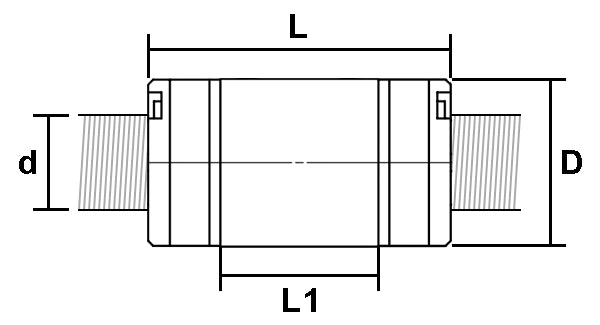

| d | 10mm |
|---|---|
| D | 19mm |
| L | 30mm |
| L1 | 18.2mm |
| Basic Dynamic Load Rating C | 1880 N |
| Basic Static Load Rating C0 | 2150 N |
| Dynamic Torque Rating T | 10.9 Nm |
| Static Torque Rating T0 | 12.5 Nm |
| Static Moment Rating Tx | 7 Nm |
| Static Moment Rating Ty | 12.1 Nm |
