SKU: M-UCHB206D1-NTN

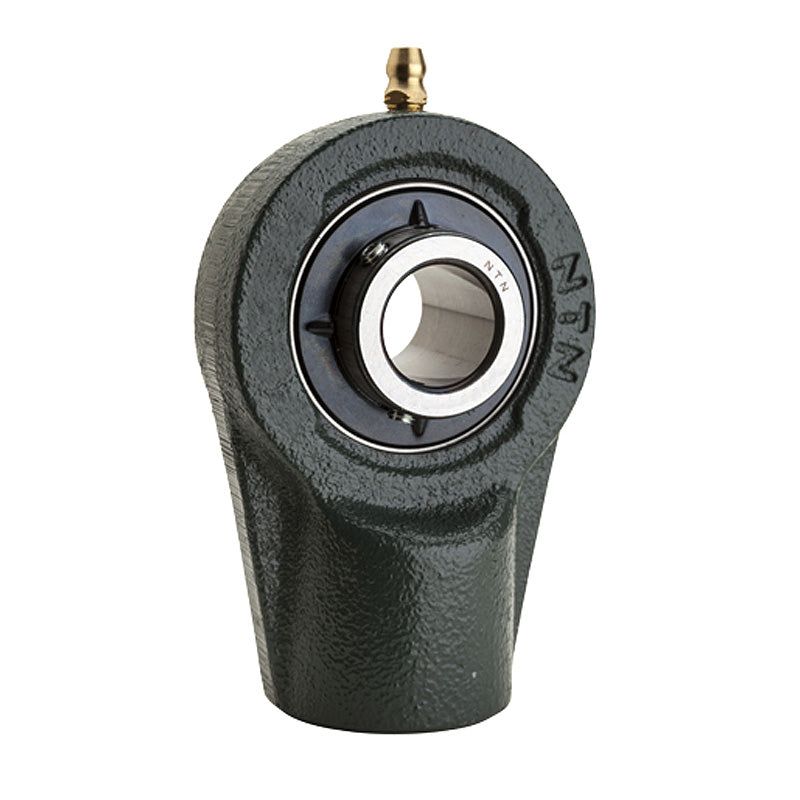

NTN M-UCHB206D1 Metric Cast Iron Hanger Bearing Unit with 30mm Bore Insert - Allow 2-3 Days
NTN M-UCHB206D1 Metric Cast Iron Hanger Bearing Unit with 30mm Bore Insert - Allow 2-3 Days
Regular price
$49.98
ex VAT
Regular price
Sale price
$49.98
ex VAT
In stock
Price Break
10+
$44.48
19+
$41.98
29+
$41.48
39+
$40.98
49+
$40.48
74+
$39.98
99+
$37.49
199+
$36.99
249+
$36.49
499+
$35.99
999+
$34.99
Couldn't load pickup availability
Description
Description
UCHB200 Series Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and includes a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 30mm
- Style:
- UCHB
Technical
Technical
| Shaft diameter | 30mm |
|---|---|
| L | 78mm |
| H<sub>1</sub> | 103mm |
| c | 0mm |
| A | 28mm |
| H | 64mm |
| N | RP3/4 |
| D | 40mm |
| j | 19mm |
| B | 38.1mm |
| S | 15.9mm |
| Mass | 0.8 kg |
