SKU: M-UCUP208D1-NTN

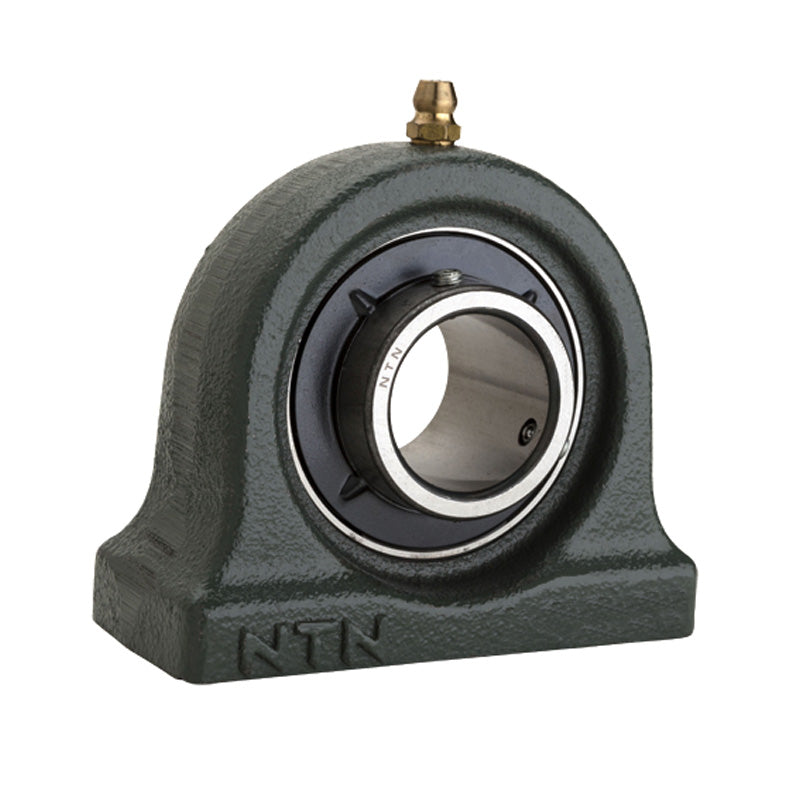

NTN M-UCUP208D1 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 40mm Bore Insert - Allow 2-3 Days
NTN M-UCUP208D1 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 40mm Bore Insert - Allow 2-3 Days
Regular price
$61.30
ex VAT
Regular price
Sale price
$61.30
ex VAT
In stock
Price Break
10+
$54.56
19+
$51.49
29+
$50.88
39+
$50.27
49+
$49.65
74+
$49.04
99+
$45.98
199+
$45.36
249+
$44.75
499+
$44.14
999+
$42.91
Description
Description
|
UCUP200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 40mm
- Style:
- UCUP
- Bolt Hole Centres:
- 84mm
Technical
Technical
| Shaft diameter | 40mm |
|---|---|
| H | 49.2mm |
| L | 116mm |
| J | 84mm |
| A | 54mm |
| j | 20mm |
| H<sub>1</sub> | 13mm |
| H<sub>2</sub> | 100mm |
| B | 49.2mm |
| S | 19mm |
| N | M14X2 |
| Mass | 1.8 kg |
