SKU: M-UELF207D1-NTN

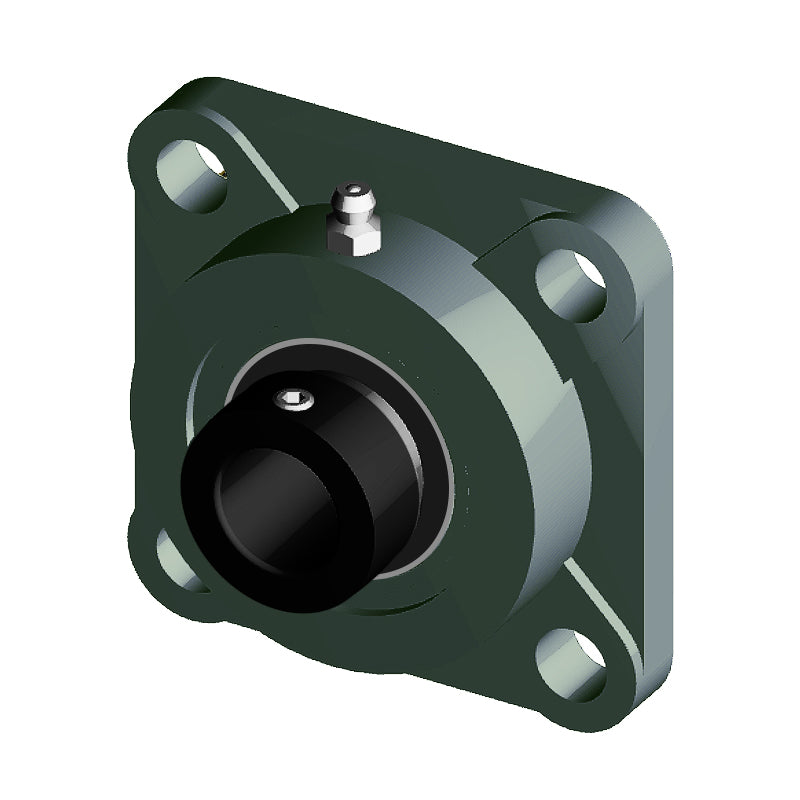

NTN M-UELF207D1 Metric Four Bolt Square Cast Iron Flange Housing with 35mm Bore Eccentric Collar Insert - Allow 2-3 Days
NTN M-UELF207D1 Metric Four Bolt Square Cast Iron Flange Housing with 35mm Bore Eccentric Collar Insert - Allow 2-3 Days
Regular price
$74.26
ex VAT
Regular price
Sale price
$74.26
ex VAT
In stock
Price Break
5+
$73.52
10+
$70.55
20+
$69.06
50+
$66.83
100+
$65.35
500+
$61.64
1000+
$51.98
Description
Description
UELF200 Series 4 Bolt Cast Iron Square Flange Housing: These cast iron housing units include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 35mm
- Style:
- UELF
- Bolt Hole Centres:
- 92mm
Technical
Technical
| Shaft diameter | 35mm |
|---|---|
| L | 117mm |
| J | 92mm |
| A<sub>2</sub> | 19mm |
| A<sub>1</sub> | 15mm |
| A | 34mm |
| N | 14mm |
| A<sub>0</sub> | 51.3mm |
| B<sub>1</sub> | 51.1mm |
| S | 18.8mm |
| F min. | 51mm |
| Fixing bolt | M12 |
| Mass | 1.6 kg |
