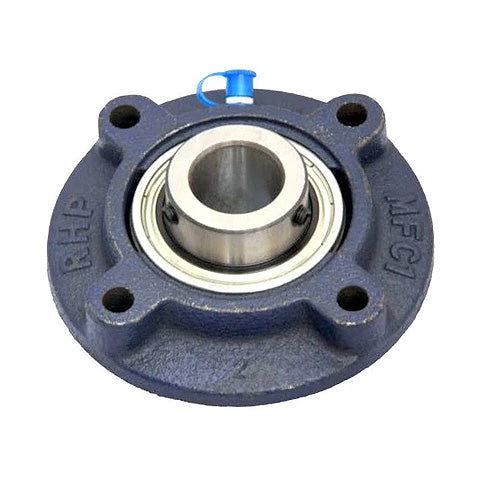

• RHP MFC100 Four Bolt Round Cast Iron Flanged Bearing Unit and 100mm Insert
1 1

SKU: MFC100-RHP

RHP MFC100 Four Bolt Round Cast Iron Flanged Bearing Unit and 100mm Insert

RHP MFC100 Four Bolt Round Cast Iron Flanged Bearing Unit and 100mm Insert
$1,036.15 ex VAT
$1,036.15 ex VAT
Sale Sold out

In stock

Price Break
10+ $922.17
19+ $870.37
29+ $860.00
39+ $849.64
49+ $839.28
74+ $828.92
99+ $777.11
199+ $766.75
249+ $756.39
499+ $746.03
999+ $725.31
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP MFC Series Heavy Duty 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing ,heavy duty full width bearing insert
Brand / Quality:
RHP - High Quality
Inside Diameter:
100mm
Style:
MFC
Pitch Circle Diameter:
260.35mm
Technical
Bore 100mm
L 298.4mm
H 228.6mm
J 260.35mm
G 20mm
A1 88.9mm
A4 46mm
A5 12.7mm
B 117.48mm
s 49.27mm
d1 130.43mm
Dynamic load 157000 N
Static load 122000 N
Rec max speed 1600 rpm
Weight 17.7 kg
Insert <a href="advanced_search_result.php?keywords=3095-100G+insonly">3095-100G Click Here</a>
Casting group 11
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
