• RHP MFC3-7/16 Four Bolt Round Cast Iron Flanged Bearing Unit and 3-7/16 inch Insert
1 1

SKU: MFC3.7/16-RHP

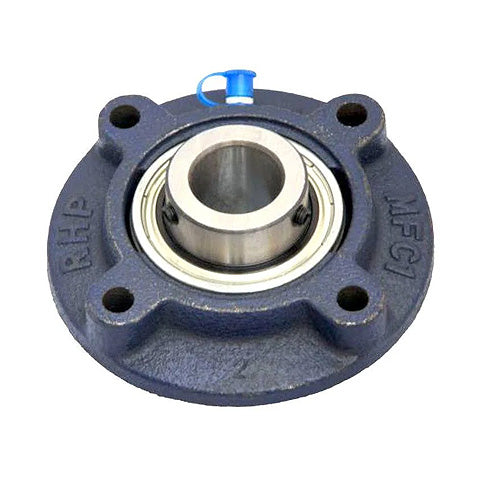

RHP MFC3-7/16 Four Bolt Round Cast Iron Flanged Bearing Unit and 3-7/16 inch Insert

RHP MFC3-7/16 Four Bolt Round Cast Iron Flanged Bearing Unit and 3-7/16 inch Insert
$714.21 ex VAT
$714.21 ex VAT
Sale Sold out

In stock

Price Break
10+ $635.65
19+ $599.94
29+ $592.79
39+ $585.65
49+ $578.51
74+ $571.37
99+ $535.66
199+ $528.52
249+ $521.37
499+ $514.23
999+ $499.95
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP MFC Series Heavy Duty 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing ,heavy duty full width bearing insert
Brand / Quality:
RHP - High Quality
Inside Diameter:
87.31mm = 3.437 (3-7/16) inch
Style:
MFC
Pitch Circle Diameter:
219.08mm = 8.625 inch
Technical
Bore 3-7/16 inch
L 10.252 inch
H 7.375 inch
J 8.625 inch
G 0.75 inch
A1 2.656 inch
A4 1.157 inch
A5 0.5 inch
B 3.781 inch
s 1.564 inch
d1 4.396 inch
Dynamic load 96000 N
Static load 71500 N
Rec max speed 1900 rpm
Weight 9.8 kg
Insert <a href="advanced_search_result.php?keywords=1090-3-7/16G+insonly">1090-3-7/16G Click Here</a>
Casting group 10
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
