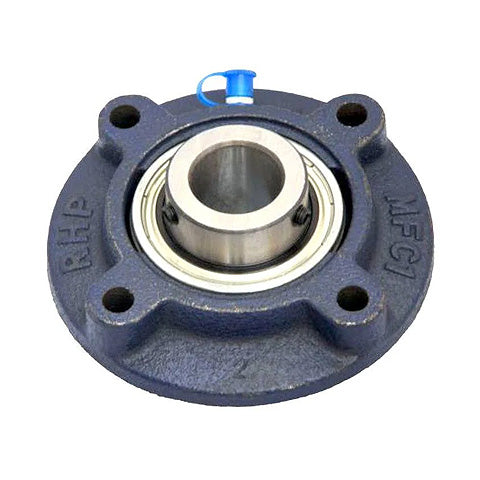

• RHP MFC40 Four Bolt Round Cast Iron Flanged Bearing Unit and 40mm Insert
1 1

SKU: MFC40-RHP

RHP MFC40 Four Bolt Round Cast Iron Flanged Bearing Unit and 40mm Insert

RHP MFC40 Four Bolt Round Cast Iron Flanged Bearing Unit and 40mm Insert
$121.68 ex VAT
$121.68 ex VAT
Sale Sold out

In stock

Price Break
10+ $108.30
19+ $102.21
29+ $100.99
39+ $99.78
49+ $98.56
74+ $97.34
99+ $91.26
199+ $90.04
249+ $88.83
499+ $87.61
999+ $85.18
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP MFC Series Heavy Duty 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing ,heavy duty full width bearing insert
Brand / Quality:
RHP - High Quality
Inside Diameter:
40mm
Style:
MFC
Pitch Circle Diameter:
111.12mm
Technical
Bore 40mm
L 133.4mm
H 92.07mm
J 111.12mm
G 10mm
A1 38.1mm
A4 19mm
A5 6.4mm
B 49.23mm
s 19.1mm
d1 52.7mm
Dynamic load 32500 N
Static load 19900 N
Rec max speed 4000 rpm
Weight 1.9 kg
Insert <a href="advanced_search_result.php?keywords=1040-40G+insonly">1040-40G Click Here</a>
Casting group 3
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
