• RHP MFC50 Four Bolt Round Cast Iron Flanged Bearing Unit and 50mm Insert
1 1

SKU: MFC50-RHP

RHP MFC50 Four Bolt Round Cast Iron Flanged Bearing Unit and 50mm Insert

RHP MFC50 Four Bolt Round Cast Iron Flanged Bearing Unit and 50mm Insert
$179.05 ex VAT
$179.05 ex VAT
Sale Sold out

In stock

Price Break
10+ $159.35
19+ $150.40
29+ $148.61
39+ $146.82
49+ $145.03
74+ $143.24
99+ $134.29
199+ $132.50
249+ $130.71
499+ $128.92
999+ $125.34
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

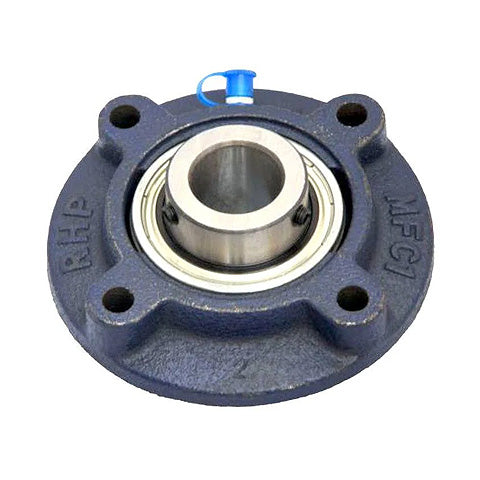

RHP MFC Series Heavy Duty 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing ,heavy duty full width bearing insert
Brand / Quality:
RHP - High Quality
Inside Diameter:
50mm
Style:
MFC
Pitch Circle Diameter:
136.52mm
Technical
Bore 50mm
L 161.9mm
H 114.3mm
J 136.52mm
G 10mm
A1 39.67mm
A4 19mm
A5 6.4mm
B 55.55mm
s 22.28mm
d1 68.81mm
Dynamic load 43500 N
Static load 29200 N
Rec max speed 3100 rpm
Weight 3 kg
Insert <a href="advanced_search_result.php?keywords=1055-50G+insonly">1055-50G Click Here</a>
Casting group 5
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
