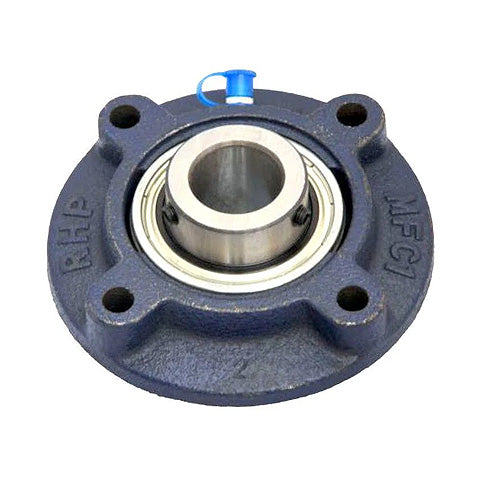

• RHP MFC70 Four Bolt Round Cast Iron Flanged Bearing Unit and 70mm Insert
1 1

SKU: MFC70-RHP

RHP MFC70 Four Bolt Round Cast Iron Flanged Bearing Unit and 70mm Insert

RHP MFC70 Four Bolt Round Cast Iron Flanged Bearing Unit and 70mm Insert
$330.94 ex VAT
$330.94 ex VAT
Sale Sold out

In stock

Price Break
10+ $294.54
19+ $277.99
29+ $274.68
39+ $271.37
49+ $268.06
74+ $264.75
99+ $248.21
199+ $244.90
249+ $241.59
499+ $238.28
999+ $231.66
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP MFC Series Heavy Duty 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing ,heavy duty full width bearing insert
Brand / Quality:
RHP - High Quality
Inside Diameter:
70mm
Style:
MFC
Pitch Circle Diameter:
190.5mm
Technical
Bore 70mm
L 222.2mm
H 161.92mm
J 190.5mm
G 16mm
A1 50.8mm
A4 21mm
A5 12.7mm
B 77.77mm
s 33.37mm
d1 92mm
Dynamic load 66000 N
Static load 49500 N
Rec max speed 2300 rpm
Weight 5.9 kg
Insert <a href="advanced_search_result.php?keywords=1075-70G+insonly">1075-70G Click Here</a>
Casting group 8
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
