SKU: MS-M10 SS-MB

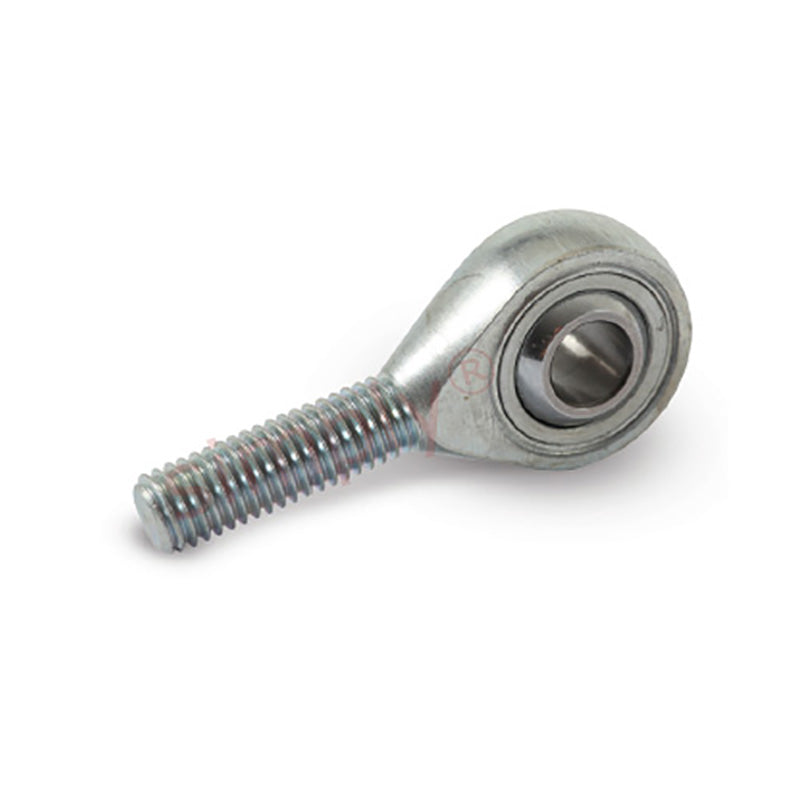

Branded MS-M10 Right Hand Metric Stainless Steel / PTFE Lined Maintenance Free Plain Male Rod End M10x1.5 Thread
In stock
Price Break
Description
|
MS SS PTFE Lined Series Maintenance Free Male Rod Ends: These stainless steel range of male rod ends incorporate a high strength PTFE bronze mesh between the ball and the liner material, suitable for high shock loads and medium to heavy mechanical load applications requiring low friction, available in both metric and imperial bore thread sizes, they do not require maintenance. |
- Brand / Quality:
- Major Brand - High Quality
- Thread Size:
- M10x1.5
- Thread M / F:
- Male
- Thread Direction:
- Right Hand
- Inside Diameter:
- 10mm
- Material:
- PTFE Lined
Technical
| Bore size | 10mm |
|---|---|
| Thread | M10x1.5 |
| W | 14mm |
| H | 10.5mm |
| D | 28mm |
| L1 | 48mm |
| L2 | 29mm |
| O | 12.9mm |
| Static load | 17500 N |
