• RHP MSC1-15/16 Cast Iron Cartridge Unit with 1-15/16 inch Bore Insert 125.44mm Outside Diameter
1 1

SKU: MSC1.15/16-RHP

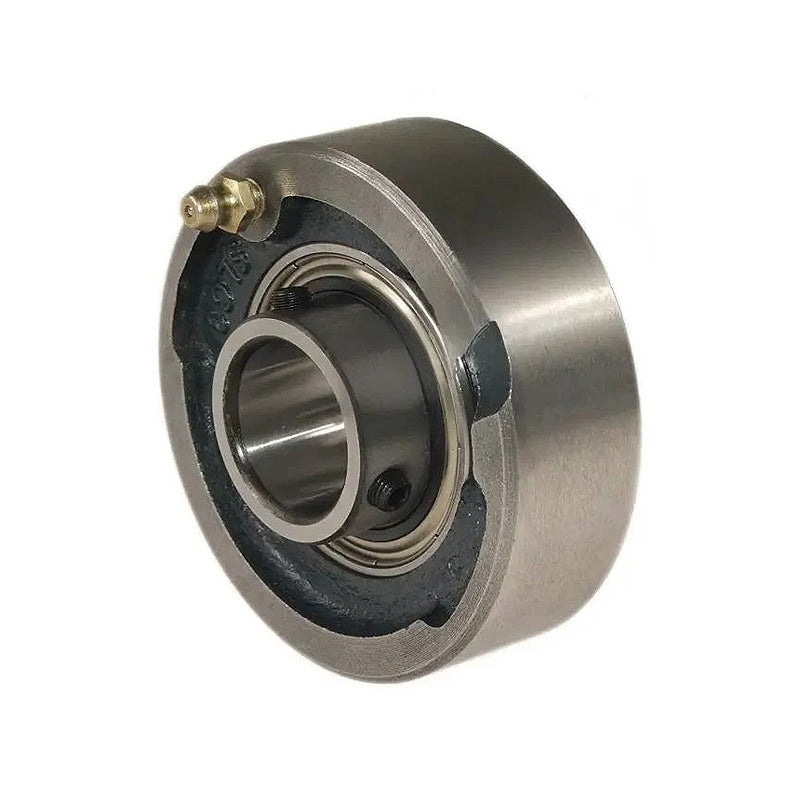

RHP MSC1-15/16 Cast Iron Cartridge Unit with 1-15/16 inch Bore Insert 125.44mm Outside Diameter

RHP MSC1-15/16 Cast Iron Cartridge Unit with 1-15/16 inch Bore Insert 125.44mm Outside Diameter
$184.86 ex VAT
$184.86 ex VAT
Sale Sold out

In stock

Price Break
10+ $164.53
19+ $155.28
29+ $153.43
39+ $151.59
49+ $149.74
74+ $147.89
99+ $138.65
199+ $136.80
249+ $134.95
499+ $133.10
999+ $129.40
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP MSC Series Heavy Duty Cast Iron Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a sealed heavy duty full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, heavy duty full width insert

Brand / Quality:
RHP - High Quality
Inside Diameter:
49.21mm = 1.937 (1-15/16) inch
Outside Diameter:
125.44mm
Style:
MSC
Technical
Bore 1-15/16 inch
L 4.9385 inch
A 1.594 inch
A1 2.109 inch
B 2.187 inch
s 0.877 inch
d1 2.709
Dynamic load Cr 43500 N
Static load Cor 29200 N
Rex max speed 3100 rpm
Weight 2.9 kg
Insert <a href="advanced_search_result.php?keywords=1055-1-15/16G+insonly">1055-1-15/16G Click Here</a>
Casting group 6
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
