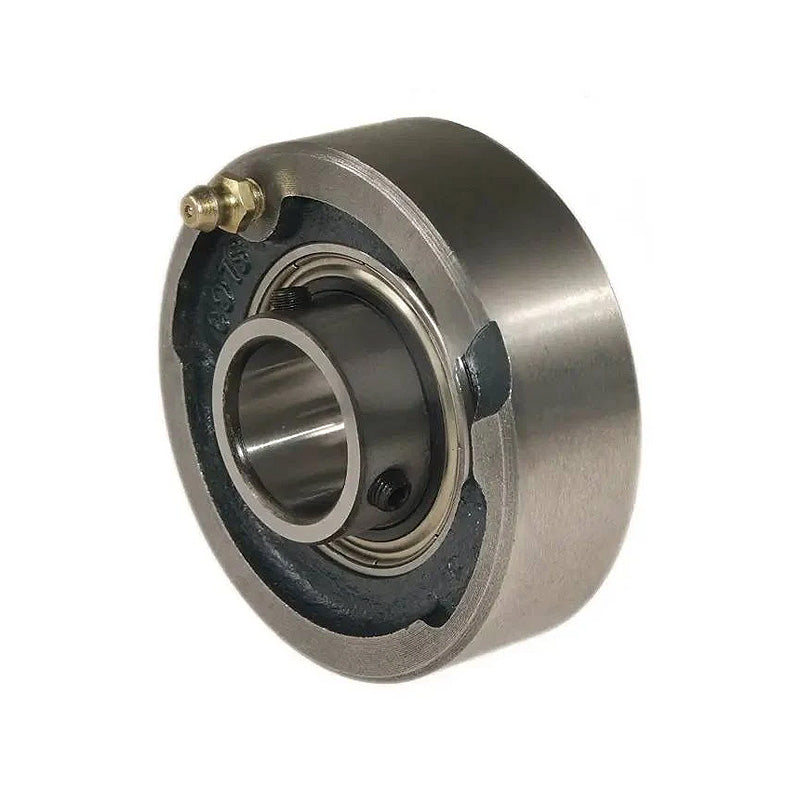

• RHP MSC1 Cast Iron Cartridge Unit with 1 inch Bore Insert 88.93mm Outside Diameter
1 1

SKU: MSC1-RHP

RHP MSC1 Cast Iron Cartridge Unit with 1 inch Bore Insert 88.93mm Outside Diameter

RHP MSC1 Cast Iron Cartridge Unit with 1 inch Bore Insert 88.93mm Outside Diameter
$67.67 ex VAT
$67.67 ex VAT
Sale Sold out

In stock

Price Break
10+ $60.23
19+ $56.84
29+ $56.17
39+ $55.49
49+ $54.81
74+ $54.14
99+ $50.75
199+ $50.08
249+ $49.40
499+ $48.72
999+ $47.37
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP MSC Series Heavy Duty Cast Iron Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a sealed heavy duty full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, heavy duty full width insert

Brand / Quality:
RHP - High Quality
Inside Diameter:
25.4mm = 1 inch
Outside Diameter:
88.93mm
Style:
MSC
Technical
Bore 1 inch
L 3.501 inch
A 1.094 inch
A1 1.422 inch
B 1.5 inch
s 0.627 inch
d1 1.575
Dynamic load Cr 19500 N
Static load Cor 11300 N
Rex max speed 5300 rpm
Weight 1.1 kg
Insert <a href="advanced_search_result.php?keywords=1030-1G+insonly">1030-1G Click Here</a>
Casting group 1
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
