• RHP MSC2-3/16 Cast Iron Cartridge Unit with 2-3/16 inch Bore Insert 149.25mm Outside Diameter
1 1

SKU: MSC2.3/16-RHP

RHP MSC2-3/16 Cast Iron Cartridge Unit with 2-3/16 inch Bore Insert 149.25mm Outside Diameter

RHP MSC2-3/16 Cast Iron Cartridge Unit with 2-3/16 inch Bore Insert 149.25mm Outside Diameter
$246.03 ex VAT
$246.03 ex VAT
Sale Sold out

In stock

Price Break
10+ $218.97
19+ $206.67
29+ $204.20
39+ $201.74
49+ $199.28
74+ $196.82
99+ $184.52
199+ $182.06
249+ $179.60
499+ $177.14
999+ $172.22
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

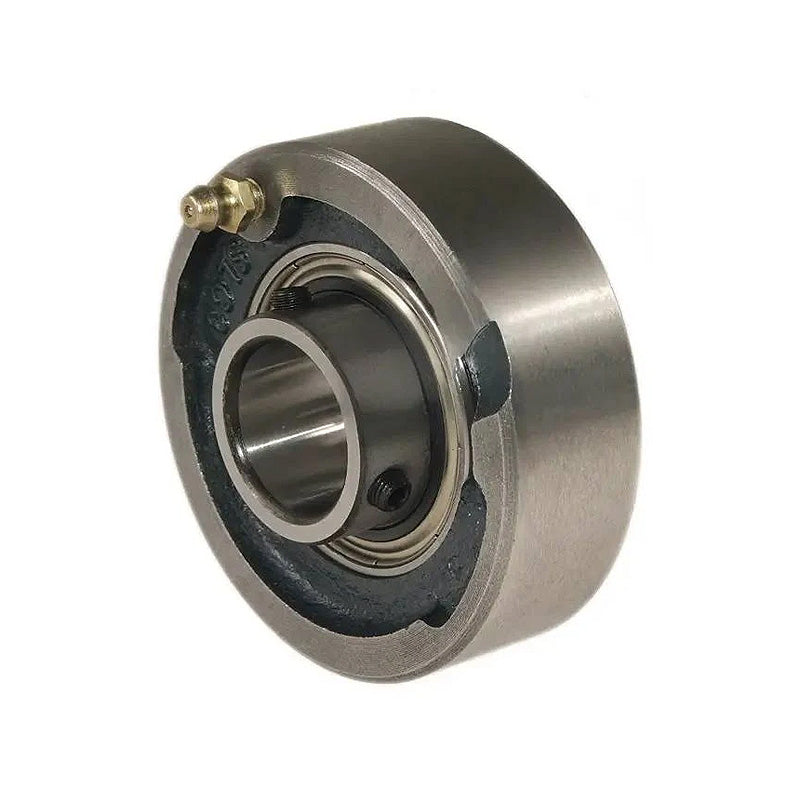

RHP MSC Series Heavy Duty Cast Iron Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a sealed heavy duty full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, heavy duty full width insert

Brand / Quality:
RHP - High Quality
Inside Diameter:
55.56mm = 2.187 (2-3/16) inch
Outside Diameter:
149.25mm
Style:
MSC
Technical
Bore 2-3/16 inch
L 5.876 inch
A 1.625 inch
A1 2.374 inch
B 2.562 inch
s 1.002 inch
d1 2.966
Dynamic load Cr 48000 N
Static load Cor 33000 N
Rex max speed 2800 rpm
Weight 4.4 kg
Insert <a href="advanced_search_result.php?keywords=1060-2-3/16G+insonly">1060-2-3/16G Click Here</a>
Casting group 7
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
