Description

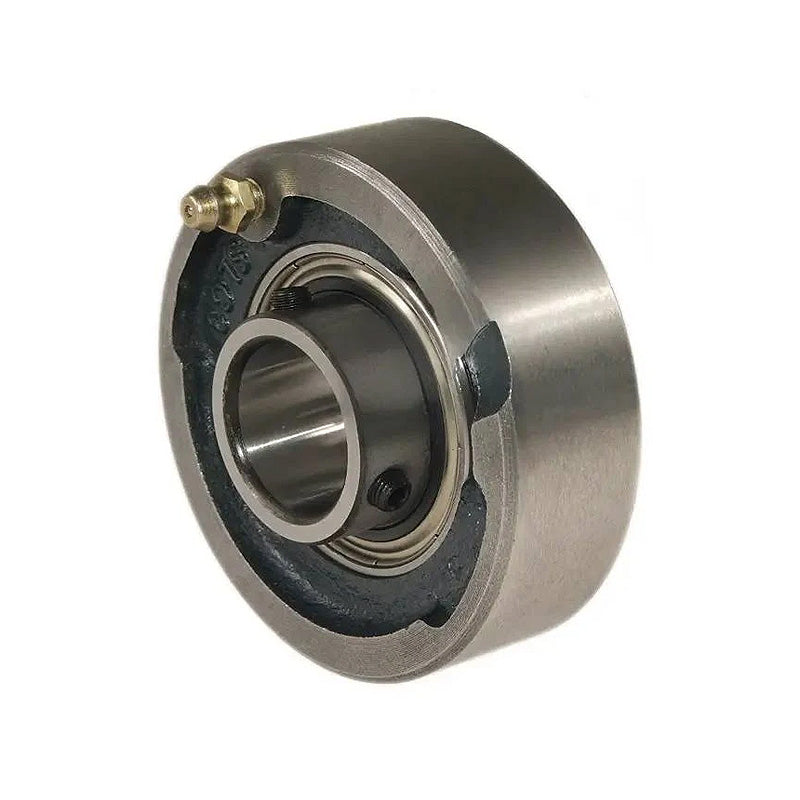

RHP MSC Series Heavy Duty Cast Iron Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a sealed heavy duty full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, heavy duty full width insert

Brand / Quality:
RHP - High Quality
Inside Diameter:
69.85mm = 2.75 (2-3/4) inch
Outside Diameter:
158.78mm
Style:
MSC
Technical
Bore 2-3/4 inch
L 6.251 inch
A 2 inch
A1 2.748 inch
B 2.938 inch
s 1.19 inch
d1 3.425
Dynamic load Cr 61000 N
Static load Cor 45000 N
Rex max speed 2450 rpm
Weight 5.3 kg
Insert <a href="advanced_search_result.php?keywords=1070-2-3/4G+insonly">1070-2-3/4G Click Here</a>
Casting group 8
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
