• RHP MSC2-7/16 Cast Iron Cartridge Unit with 2-7/16 inch Bore Insert 158.78mm Outside Diameter
1 1

SKU: MSC2.7/16-RHP

RHP MSC2-7/16 Cast Iron Cartridge Unit with 2-7/16 inch Bore Insert 158.78mm Outside Diameter

RHP MSC2-7/16 Cast Iron Cartridge Unit with 2-7/16 inch Bore Insert 158.78mm Outside Diameter
$291.54 ex VAT
$291.54 ex VAT
Sale Sold out

In stock

Price Break
10+ $259.47
19+ $244.89
29+ $241.98
39+ $239.06
49+ $236.15
74+ $233.23
99+ $218.66
199+ $215.74
249+ $212.82
499+ $209.91
999+ $204.08
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

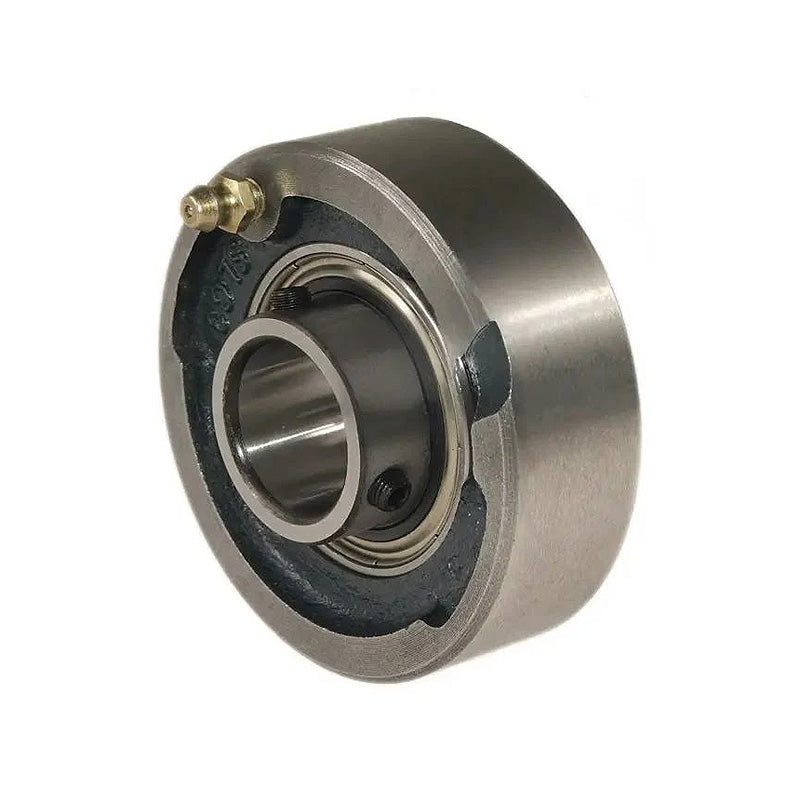

RHP MSC Series Heavy Duty Cast Iron Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a sealed heavy duty full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, heavy duty full width insert

Brand / Quality:
RHP - High Quality
Inside Diameter:
61.91mm = 2.437 (2-7/16) inch
Outside Diameter:
158.78mm
Style:
MSC
Technical
Bore 2-7/16 inch
L 6.251 inch
A 2 inch
A1 2.748 inch
B 2.938 inch
s 1.19 inch
d1 3.425
Dynamic load Cr 61000 N
Static load Cor 45000 N
Rex max speed 2450 rpm
Weight 5.3 kg
Insert <a href="advanced_search_result.php?keywords=1070-2-7/16G+insonly">1070-2-7/16G Click Here</a>
Casting group 8
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
