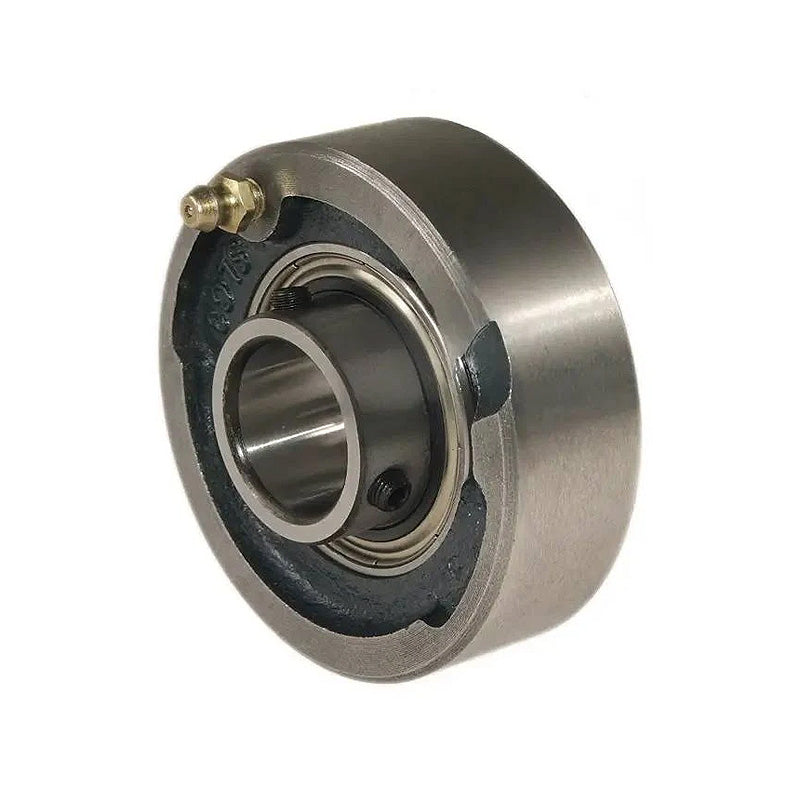

• RHP MSC4 Cast Iron Cartridge Unit with 4 inch Bore Insert 241.33mm Outside Diameter
1 1

SKU: MSC4-RHP

RHP MSC4 Cast Iron Cartridge Unit with 4 inch Bore Insert 241.33mm Outside Diameter

RHP MSC4 Cast Iron Cartridge Unit with 4 inch Bore Insert 241.33mm Outside Diameter
$1,230.83 ex VAT
$1,230.83 ex VAT
Sale Sold out

In stock

Price Break
10+ $1,095.44
19+ $1,033.90
29+ $1,021.59
39+ $1,009.28
49+ $996.97
74+ $984.66
99+ $923.12
199+ $910.81
249+ $898.51
499+ $886.20
999+ $861.58
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP MSC Series Heavy Duty Cast Iron Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a sealed heavy duty full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, heavy duty full width insert

Brand / Quality:
RHP - High Quality
Inside Diameter:
101.6mm = 4 inch
Outside Diameter:
241.33mm
Style:
MSC
Technical
Bore 4 inch
L 9.501 inch
A 3 inch
A1 4.188 inch
B 4.625 inch
s 1.94 inch
d1 5.135
Dynamic load Cr 157000 N
Static load Cor 122000 N
Rex max speed 1600 rpm
Weight 20.4 kg
Insert <a href="advanced_search_result.php?keywords=3095-4G+insonly">3095-4G Click Here</a>
Casting group 13
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
