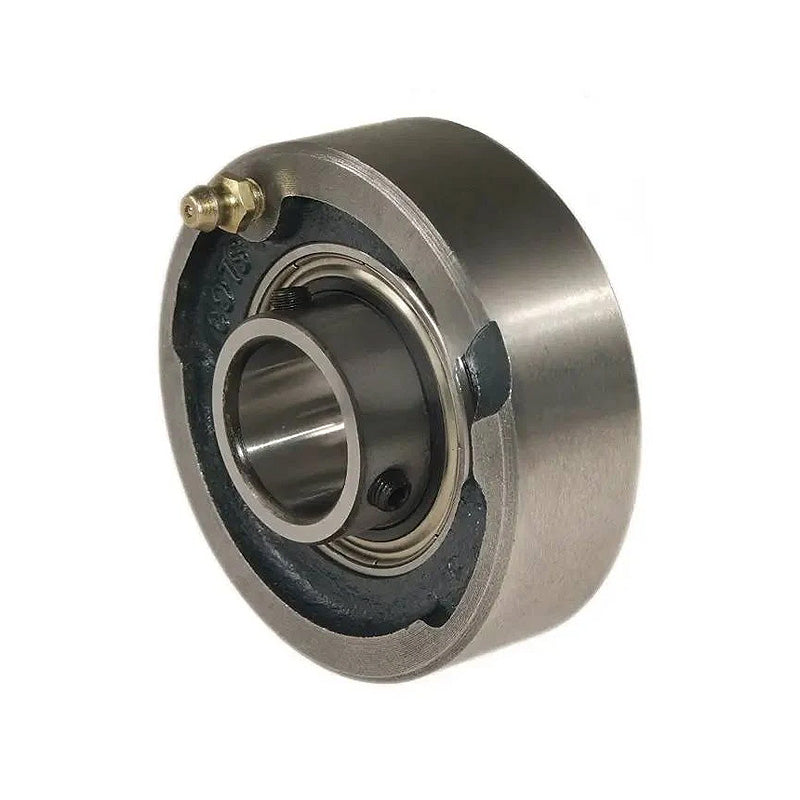

• RHP MSC50 Cast Iron Cartridge Unit with 50mm Bore Insert 115.91mm Outside Diameter
1 1

SKU: MSC50-RHP

RHP MSC50 Cast Iron Cartridge Unit with 50mm Bore Insert 115.91mm Outside Diameter

RHP MSC50 Cast Iron Cartridge Unit with 50mm Bore Insert 115.91mm Outside Diameter
$118.63 ex VAT
$118.63 ex VAT
Sale Sold out

In stock

Price Break
10+ $105.58
19+ $99.65
29+ $98.46
39+ $97.28
49+ $96.09
74+ $94.90
99+ $88.97
199+ $87.79
249+ $86.60
499+ $85.41
999+ $83.04
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP MSC Series Heavy Duty Cast Iron Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a sealed heavy duty full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, heavy duty full width insert

Brand / Quality:
RHP - High Quality
Inside Diameter:
50mm
Outside Diameter:
115.91mm
Style:
MSC
Technical
Bore 50mm
L 115.913mm
A 37.31mm
A1 51.18mm
B 51.59mm
s 19.1mm
d1 62.2
Dynamic load Cr 35000 N
Static load Cor 23200 N
Rex max speed 3400 rpm
Weight 2.3 kg
Insert <a href="advanced_search_result.php?keywords=1050-50G+insonly">1050-50G Click Here</a>
Casting group 5
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
