• RHP MSC65 Cast Iron Cartridge Unit with 65mm Bore Insert 158.78mm Outside Diameter
1 1

SKU: MSC65-RHP

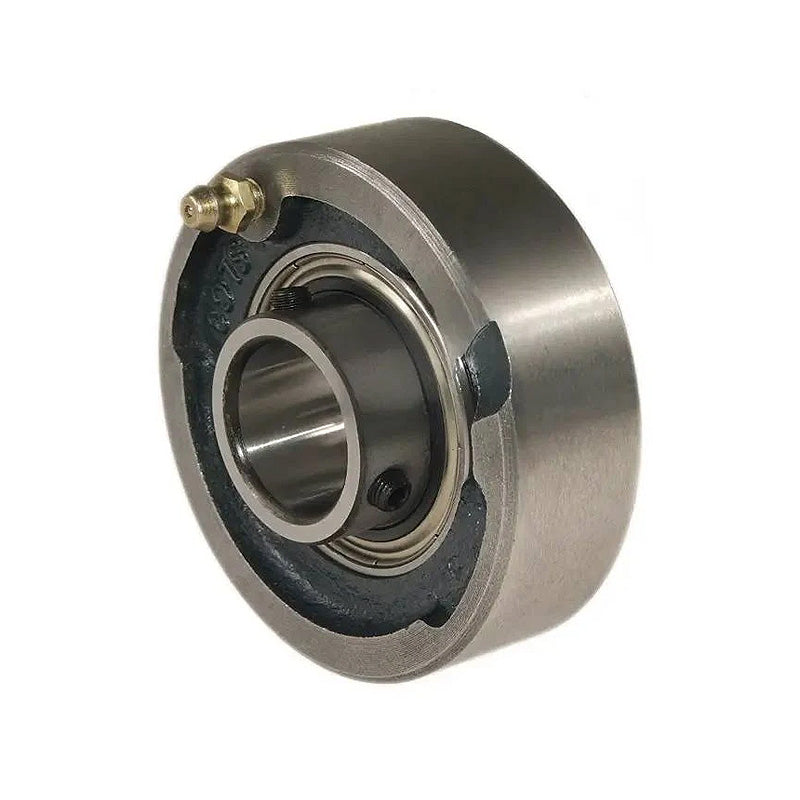

RHP MSC65 Cast Iron Cartridge Unit with 65mm Bore Insert 158.78mm Outside Diameter

RHP MSC65 Cast Iron Cartridge Unit with 65mm Bore Insert 158.78mm Outside Diameter
$274.81 ex VAT
$274.81 ex VAT
Sale Sold out

In stock

Price Break
10+ $244.58
19+ $230.84
29+ $228.09
39+ $225.34
49+ $222.60
74+ $219.85
99+ $206.11
199+ $203.36
249+ $200.61
499+ $197.86
999+ $192.37
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP MSC Series Heavy Duty Cast Iron Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a sealed heavy duty full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, heavy duty full width insert

Brand / Quality:
RHP - High Quality
Inside Diameter:
65mm
Outside Diameter:
158.78mm
Style:
MSC
Technical
Bore 65mm
L 158.775mm
A 50.8mm
A1 69.8mm
B 74.63mm
s 30.23mm
d1 87
Dynamic load Cr 61000 N
Static load Cor 45000 N
Rex max speed 2450 rpm
Weight 5.3 kg
Insert <a href="advanced_search_result.php?keywords=1070-65G+insonly">1070-65G Click Here</a>
Casting group 8
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
