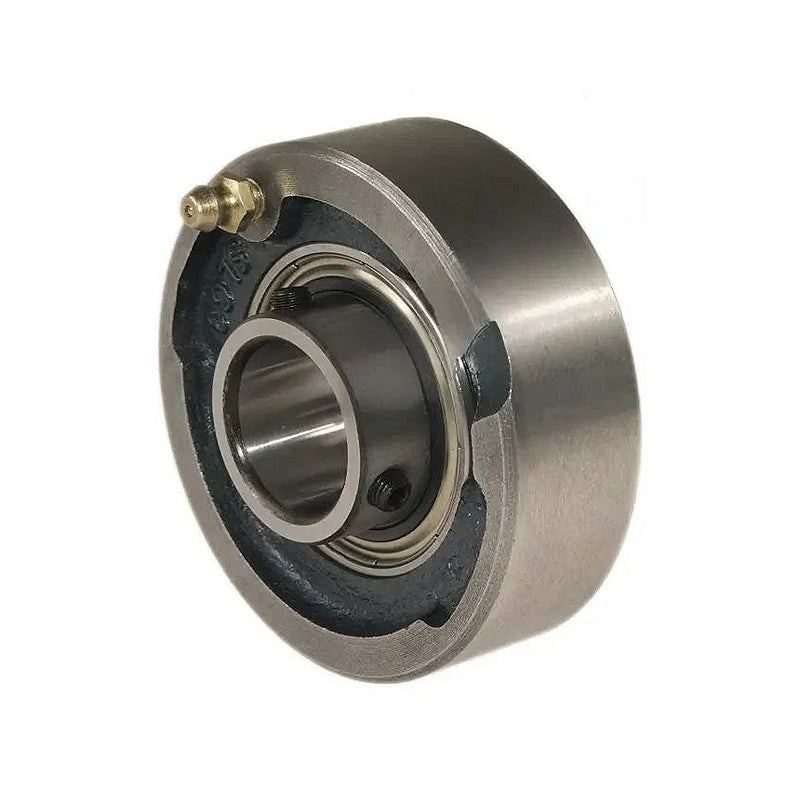

• RHP MSC75 Cast Iron Cartridge Unit with 75mm Bore Insert 168.3mm Outside Diameter
1 1

SKU: MSC75-RHP

RHP MSC75 Cast Iron Cartridge Unit with 75mm Bore Insert 168.3mm Outside Diameter

RHP MSC75 Cast Iron Cartridge Unit with 75mm Bore Insert 168.3mm Outside Diameter
$315.44 ex VAT
$315.44 ex VAT
Sale Sold out

In stock

Price Break
10+ $280.74
19+ $264.97
29+ $261.82
39+ $258.66
49+ $255.51
74+ $252.35
99+ $236.58
199+ $233.43
249+ $230.27
499+ $227.12
999+ $220.81
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP MSC Series Heavy Duty Cast Iron Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a sealed heavy duty full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, heavy duty full width insert

Brand / Quality:
RHP - High Quality
Inside Diameter:
75mm
Outside Diameter:
168.3mm
Style:
MSC
Technical
Bore 75mm
L 168.3mm
A 50.8mm
A1 69.8mm
B 77.77mm
s 33.37mm
d1 92
Dynamic load Cr 66000 N
Static load Cor 49500 N
Rex max speed 2300 rpm
Weight 6.2 kg
Insert <a href="advanced_search_result.php?keywords=1075-75G+insonly">1075-75G Click Here</a>
Casting group 9
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
