SKU: MSFT1.3/16-RHP

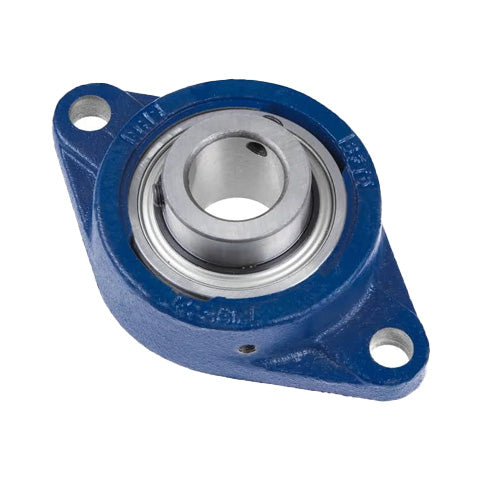

RHP MSFT1-3/16 Heavy Duty Two Bolt Oval Cast Iron Flange Housing 1-3/16 inch Bore Insert
RHP MSFT1-3/16 Heavy Duty Two Bolt Oval Cast Iron Flange Housing 1-3/16 inch Bore Insert
Regular price
$122.08
ex VAT
Regular price
Sale price
$122.08
ex VAT
In stock
Price Break
10+
$108.65
19+
$102.55
29+
$101.33
39+
$100.11
49+
$98.88
74+
$97.66
99+
$91.56
199+
$90.34
249+
$89.12
499+
$87.90
999+
$85.46
Couldn't load pickup availability
Description
Description
|
RHP MSFT Series Heavy Duty 2 Bolt Oval Cast Iron Housings: Bearing units supplied with a full width sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has two grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 30.16mm = 1.187 (1-3/16) inch
- Style:
- MSFT
- Bolt Hole Centres:
- 129.997mm = 5.118 inch
Technical
Technical
| Bore | 1-3/16 inch |
|---|---|
| L | 3.76 inch |
| H | 6.122 inch |
| J | 5.118 inch |
| G | 0.5 inch |
| A | 1.236 inch |
| A1 | 1.827 inch |
| A4 | 0.5 inch |
| B | 1.688 inch |
| s | 0.69 |
| d1 | 1.838 inch |
| Dynamic load | 25700 N |
| Static load | 15300 N |
| Rec max speed | 4500 rpm |
| Weight | 1.4 kg |
| Insert | <a href="advanced_search_result.php?keywords=1035-1-3/16G+insonly">1035-1-3/16G Click Here</a> |
| Casting group | 2 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
