SKU: MSFT1025-20K-RHP

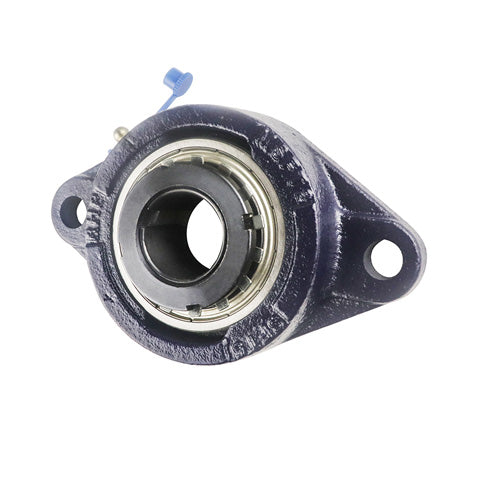

RHP MSFT1025-20K Two Bolt Oval Cast Iron Flange Housing 20mm Bore Insert
RHP MSFT1025-20K Two Bolt Oval Cast Iron Flange Housing 20mm Bore Insert
Regular price
$92.84
ex VAT
Regular price
Sale price
$92.84
ex VAT
In stock
Price Break
10+
$82.63
19+
$77.99
29+
$77.06
39+
$76.13
49+
$75.20
74+
$74.27
99+
$69.63
199+
$68.70
249+
$67.77
499+
$66.84
999+
$64.99
Description
Description
|
RHP MSFT Series Heavy Duty 2 Bolt Oval Cast Iron Housings: Bearing units supplied with a full width sealed heavy duty bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing has a taper bore to accommodate the taper sleeve which is tightened using a lock nut to secure to the shaft after installation, the locknut is subsequently secured with the tab washer. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 20mm
- Style:
- MSFT
- Bolt Hole Centres:
- 99mm

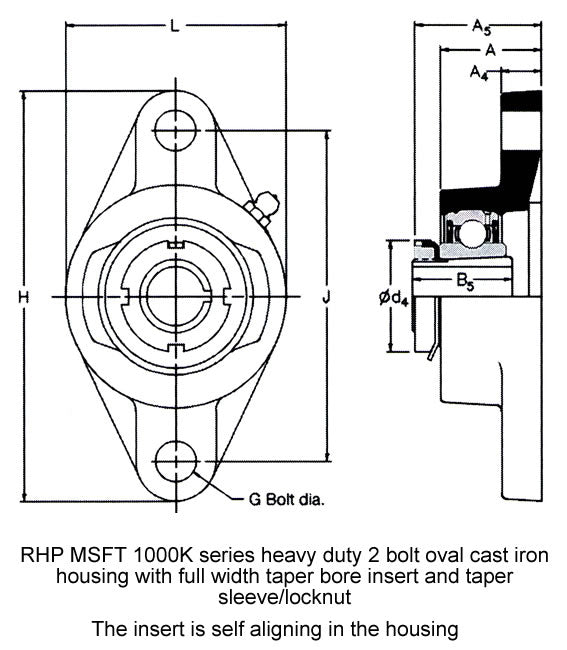

Technical
Technical
| Bore | 20mm |
|---|---|
| L | 68.3mm |
| H | 123.8mm |
| J | 99mm |
| G | 10mm |
| A | 28.6mm |
| A4 | 11.1mm |
| A5 | 36.5mm |
| B5 | 29mm |
| s | -mm |
| d4 | 38mm |
| Dynamic load | 14000 N |
| Static load | 7880 N |
| Rec max speed | 6250 rpm |
| Weight | 0.9 kg |
| Insert | <a href="advanced_search_result.php?keywords=1025K+insonly">1025K Click Here</a> |
| Casting group | SFT3 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
