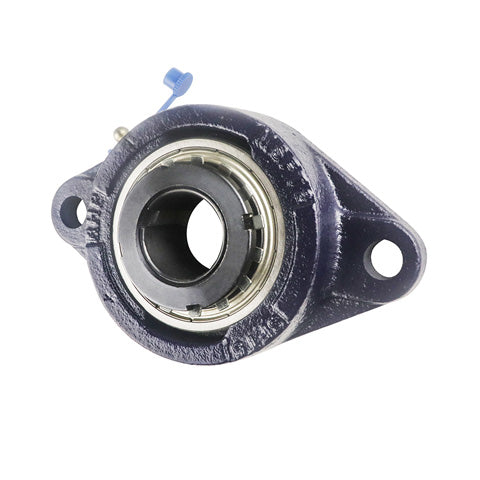

• RHP MSFT1035-30K Two Bolt Oval Cast Iron Flange Housing 30mm Bore Insert
1 1

SKU: MSFT1035-30K-RHP

RHP MSFT1035-30K Two Bolt Oval Cast Iron Flange Housing 30mm Bore Insert

RHP MSFT1035-30K Two Bolt Oval Cast Iron Flange Housing 30mm Bore Insert
$137.04 ex VAT
$137.04 ex VAT
Sale Sold out

In stock

Price Break
10+ $121.97
19+ $115.11
29+ $113.74
39+ $112.37
49+ $111.00
74+ $109.63
99+ $102.78
199+ $101.41
249+ $100.04
499+ $98.67
999+ $95.93
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP MSFT Series Heavy Duty 2 Bolt Oval Cast Iron Housings: Bearing units supplied with a full width sealed heavy duty bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing has a taper bore to accommodate the taper sleeve which is tightened using a lock nut to secure to the shaft after installation, the locknut is subsequently secured with the tab washer.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, taper sleeve fixing, full width insert, heavy duty

Brand / Quality:
RHP - High Quality
Inside Diameter:
30mm
Style:
MSFT
Bolt Hole Centres:
130mm
Technical
Bore 30mm
L 95.5mm
H 155.5mm
J 130mm
G 12mm
A 31.4mm
A4 12.7mm
A5 40.5mm
B5 35mm
s -mm
d4 52mm
Dynamic load 25700 N
Static load 15300 N
Rec max speed 4500 rpm
Weight 1.4 kg
Insert <a href="advanced_search_result.php?keywords=1035K+insonly">1035K Click Here</a>
Casting group 2
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
