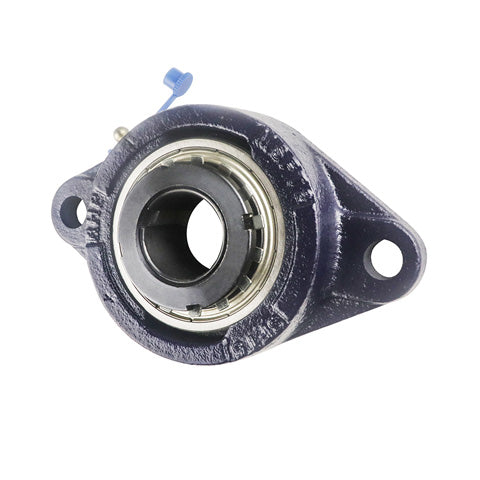

• RHP MSFT1040K Two Bolt Oval Cast Iron Flange Housing 35mm Bore Insert
1 1

SKU: MSFT1040K-RHP

RHP MSFT1040K Two Bolt Oval Cast Iron Flange Housing 35mm Bore Insert

RHP MSFT1040K Two Bolt Oval Cast Iron Flange Housing 35mm Bore Insert
$118.25 ex VAT
$118.25 ex VAT
Sale Sold out

In stock

Price Break
10+ $105.24
19+ $99.33
29+ $98.15
39+ $96.97
49+ $95.78
74+ $94.60
99+ $88.69
199+ $87.51
249+ $86.32
499+ $85.14
999+ $82.78
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP MSFT 1000K Series Heavy Duty 2 Bolt Oval Cast Iron Housings: Bearing units supplied with a full width sealed taper bore heavy duty bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing has a taper bore to accommodate a taper sleeve (not supplied) which is tightened using a lock nut to secure to the shaft after installation, the locknut is subsequently secured with a tab washer.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, taper sleeve fixing, full width insert, heavy duty

Brand / Quality:
RHP - High Quality
Style:
MSFT
Bolt Hole Centres:
143.5mm
Technical
L 101.6mm
H 171.4mm
J 143.5mm
G 12mm
A 34.9mm
A4 12.7mm
d4 58mm
Dynamic load 32500 N
Static load 19900 N
Rec max speed 4000 rpm
Weight 1.9 kg
Casting group 3
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
