SKU: MST1.11/16-RHP

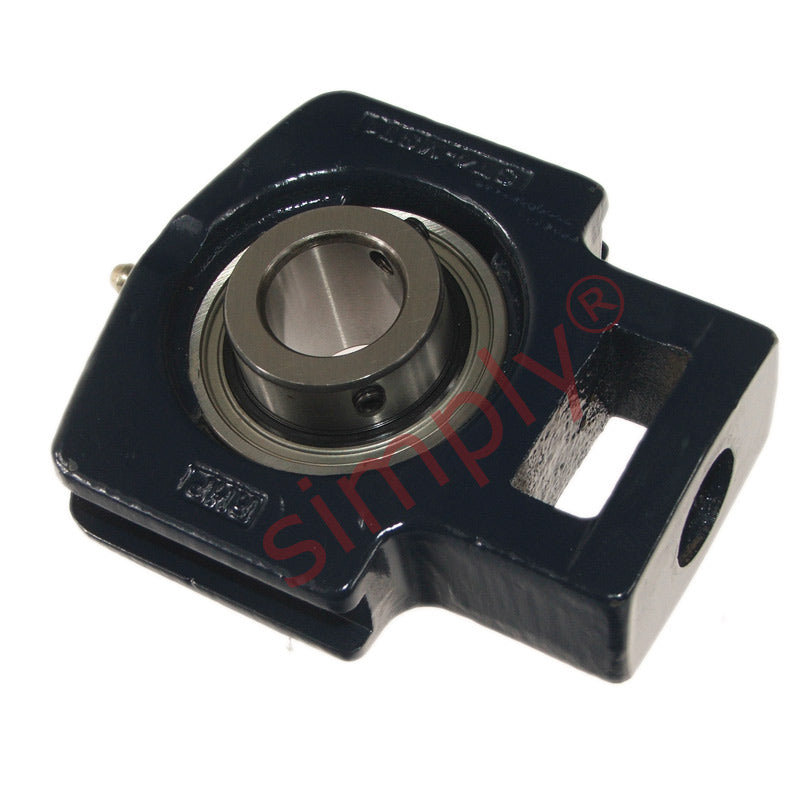

RHP MST1-11/16 Cast Iron Take Up Unit and 1-11/16 inch Bore Insert
RHP MST1-11/16 Cast Iron Take Up Unit and 1-11/16 inch Bore Insert
Regular price
$189.96
ex VAT
Regular price
Sale price
$189.96
ex VAT
In stock
Price Break
10+
$169.06
19+
$159.57
29+
$157.67
39+
$155.77
49+
$153.87
74+
$151.97
99+
$142.47
199+
$140.57
249+
$138.67
499+
$136.77
999+
$132.97
Couldn't load pickup availability
Description
Description
|
RHP MST Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a sealed heavy duty full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 42.86mm = 1.687 (1-11/16) inch
- Style:
- MST
Technical
Technical
| Bore | 1-11/16 inch |
|---|---|
| L | 5.945 inch |
| L1 | 3.563 inch |
| L2 | 0.61 inch |
| L3 | 0.807 inch |
| L4 | 3.209 inch |
| L5 | 1.988 inch |
| H | 4.646 inch |
| H1 | 3.248 inch |
| H2 | 1.949 inch |
| H3 | 3.976 inch |
| N | 1.142 inch |
| A | 1.949 inch |
| A1 | 1.457 inch |
| A2 | 0.689 inch |
| B | 2.031 inch |
| B5 | - inch |
| s | 0.752 inch |
| d1 | 2.449 inch |
| d4 | - inch |
| Dynamic load | 35000 N |
| Static load | 23200 N |
| Rec max speed | 3400 rpm |
| Weight | 2.8 kg |
| Insert | <a href="advanced_search_result.php?keywords=1050-1-11/16G+insonly">1050-1-11/16G Click Here</a> |
| Casting group | 5 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
