• RHP MST1-3/8 Cast Iron Take Up Unit and 1-3/8 inch Bore Insert
1 1

SKU: MST1.3/8-RHP

RHP MST1-3/8 Cast Iron Take Up Unit and 1-3/8 inch Bore Insert

RHP MST1-3/8 Cast Iron Take Up Unit and 1-3/8 inch Bore Insert
$150.51 ex VAT
$150.51 ex VAT
Sale Sold out

In stock

Price Break
10+ $133.95
19+ $126.43
29+ $124.92
39+ $123.42
49+ $121.91
74+ $120.41
99+ $112.88
199+ $111.38
249+ $109.87
499+ $108.37
999+ $105.36
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

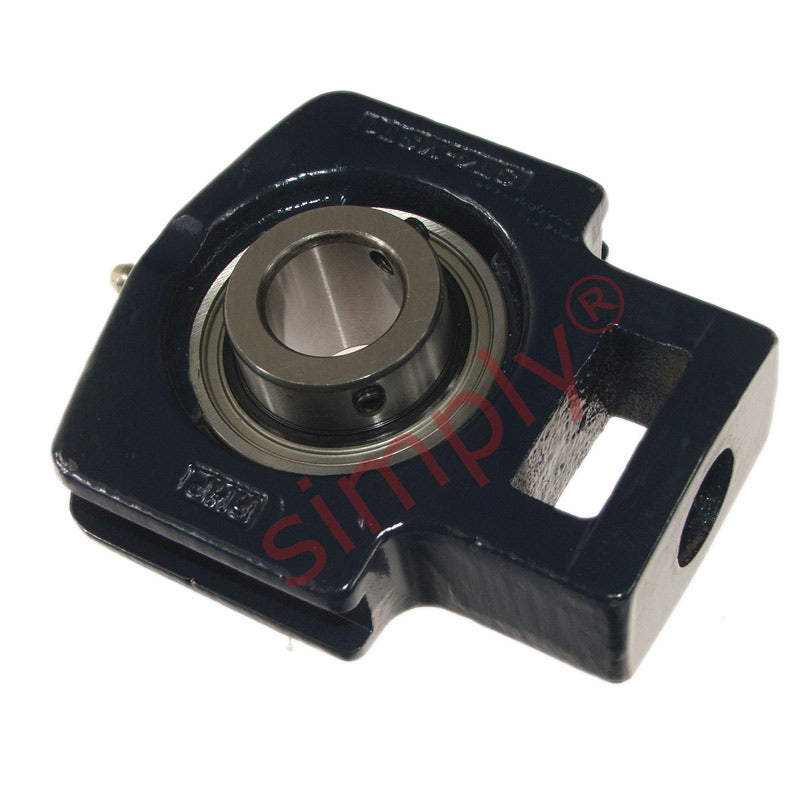

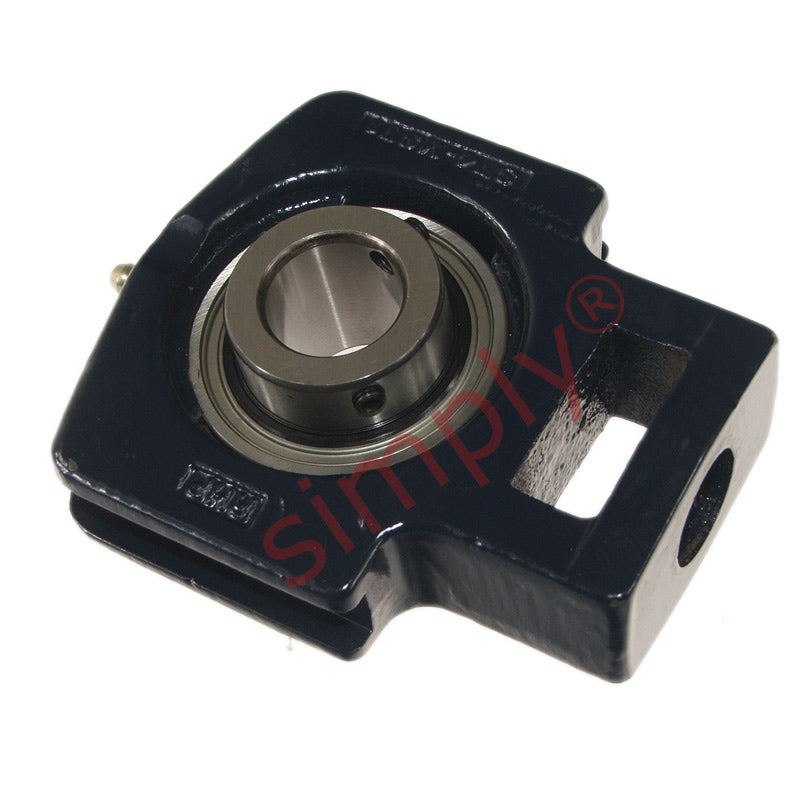

RHP MST Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a sealed heavy duty full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width heavy duty insert

Brand / Quality:
RHP - High Quality
Inside Diameter:
34.93mm = 1.375 (1-3/8) inch
Style:
MST
Technical
Bore 1-3/8 inch
L 5.65 inch
L1 3.512 inch
L2 0.61 inch
L3 0.807 inch
L4 3.209 inch
L5 1.988 inch
H 4.646 inch
H1 3.248 inch
H2 1.949 inch
H3 3.976 inch
N 1.142 inch
A 1.949 inch
A1 1.457 inch
A2 0.689 inch
B 1.938 inch
B5 - inch
s 0.752 inch
d1 2.075 inch
d4 - inch
Dynamic load 32500 N
Static load 19900 N
Rec max speed 4000 rpm
Weight 2.7 kg
Insert <a href="advanced_search_result.php?keywords=1040-1-3/8G+insonly">1040-1-3/8G Click Here</a>
Casting group 3
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
