SKU: MST30-RHP

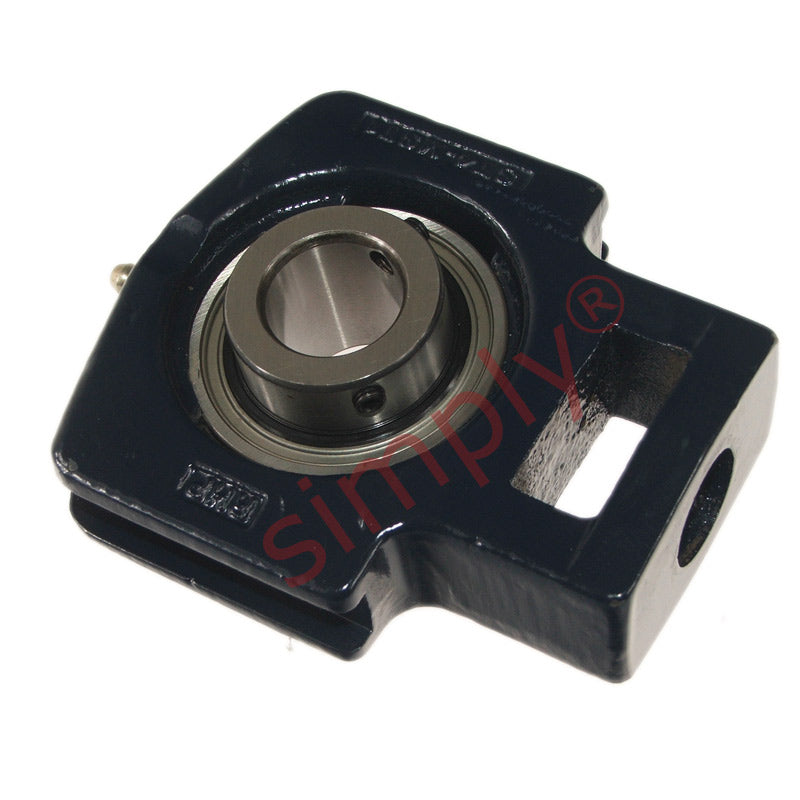

RHP MST30 Cast Iron Take Up Unit and 30mm Bore Insert
RHP MST30 Cast Iron Take Up Unit and 30mm Bore Insert
Regular price
$123.88
ex VAT
Regular price
Sale price
$123.88
ex VAT
In stock
Price Break
10+
$110.25
19+
$104.06
29+
$102.82
39+
$101.58
49+
$100.34
74+
$99.10
99+
$92.91
199+
$91.67
249+
$90.43
499+
$89.19
999+
$86.72
Description
Description
|
RHP MST Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a sealed heavy duty full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 30mm
- Style:
- MST
Technical
Technical
| Bore | 30mm |
|---|---|
| L | 124mm |
| L1 | 75.5mm |
| L2 | 12.5mm |
| L3 | 16.5mm |
| L4 | 64.5mm |
| L5 | 43mm |
| H | 101.5mm |
| H1 | 64.5mm |
| H2 | 37.5mm |
| H3 | 89mm |
| N | 22.5mm |
| A | 36.5mm |
| A1 | 30mm |
| A2 | 13.5mm |
| B | 42.88mm |
| B5 | -mm |
| s | 17.53mm |
| d1 | 46.69mm |
| d4 | -mm |
| Dynamic load | 25700 N |
| Static load | 15300 N |
| Rec max speed | 4500 rpm |
| Weight | 1.6 kg |
| Insert | <a href="advanced_search_result.php?keywords=1035-30G+insonly">1035-30G Click Here</a> |
| Casting group | 2 |
| Grease nipple thread | 1/4 UNF, 1/4mm x 28 TPI |
