SKU: MST75-RHP

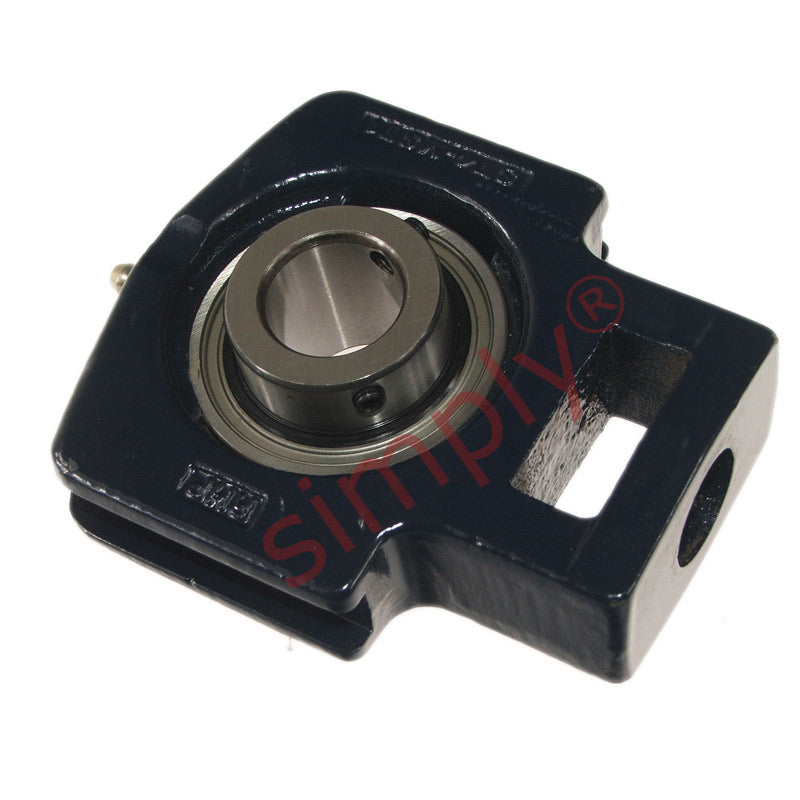

RHP MST75 Cast Iron Take Up Unit and 75mm Bore Insert
RHP MST75 Cast Iron Take Up Unit and 75mm Bore Insert
Regular price
$475.26
ex VAT
Regular price
Sale price
$475.26
ex VAT
In stock
Price Break
10+
$422.98
19+
$399.22
29+
$394.47
39+
$389.71
49+
$384.96
74+
$380.21
99+
$356.45
199+
$351.69
249+
$346.94
499+
$342.19
999+
$332.68
Description
Description
|
RHP MST Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a sealed heavy duty full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 75mm
- Style:
- MST
Technical
Technical
| Bore | 75mm |
|---|---|
| L | 231.5mm |
| L1 | 139.5mm |
| L2 | 20.5mm |
| L3 | 32mm |
| L4 | 125mm |
| L5 | 74mm |
| H | 184mm |
| H1 | 113mm |
| H2 | 70mm |
| H3 | 165.1mm |
| N | 42mm |
| A | 70mm |
| A1 | 54mm |
| A2 | 27mm |
| B | 82.55mm |
| B5 | -mm |
| s | 33.37mm |
| d1 | 98.5mm |
| d4 | -mm |
| Dynamic load | 71500 N |
| Static load | 54500 N |
| Rec max speed | 2150 rpm |
| Weight | 9 kg |
| Insert | <a href="advanced_search_result.php?keywords=1080-75G+insonly">1080-75G Click Here</a> |
| Casting group | 10 |
| Grease nipple thread | 1/4 UNF, 1/4mm x 28 TPI |
