SKU: MST85-RHP

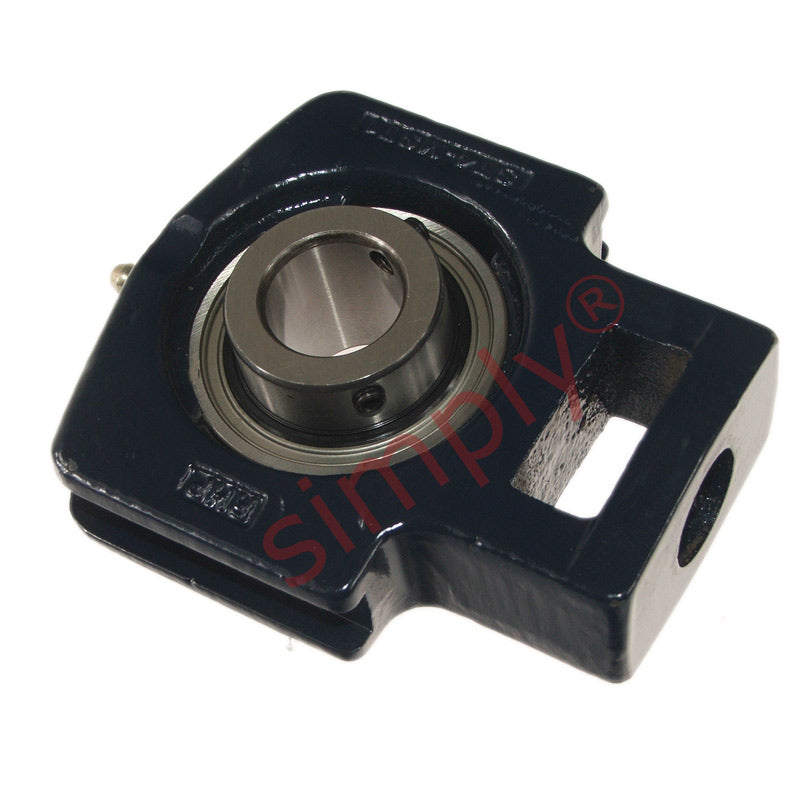

RHP MST85 Cast Iron Take Up Unit and 85mm Bore Insert
RHP MST85 Cast Iron Take Up Unit and 85mm Bore Insert
Regular price
$1,171.73
ex VAT
Regular price
Sale price
$1,171.73
ex VAT
In stock
Price Break
10+
$1,042.84
19+
$984.25
29+
$972.54
39+
$960.82
49+
$949.10
74+
$937.38
99+
$878.80
199+
$867.08
249+
$855.36
499+
$843.65
999+
$820.21
Description
Description
|
RHP MST Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a sealed heavy duty full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 85mm
- Style:
- MST
Technical
Technical
| Bore | 85mm |
|---|---|
| L | 270mm |
| L1 | 165mm |
| L2 | 28.5mm |
| L3 | 38mm |
| L4 | 152.5mm |
| L5 | 90mm |
| H | 216mm |
| H1 | 127mm |
| H2 | 73mm |
| H3 | 190.5mm |
| N | 47.5mm |
| A | 79.5mm |
| A1 | 68.5mm |
| A2 | 46.05mm |
| B | 96.04mm |
| B5 | -mm |
| s | 39.73mm |
| d1 | 111.66mm |
| d4 | -mm |
| Dynamic load | 96000 N |
| Static load | 71500 N |
| Rec max speed | 1900 rpm |
| Weight | 16.8 kg |
| Insert | <a href="advanced_search_result.php?keywords=1090-85G+insonly">1090-85G Click Here</a> |
| Casting group | 12 |
| Grease nipple thread | 1/4 UNF, 1/4mm x 28 TPI |
