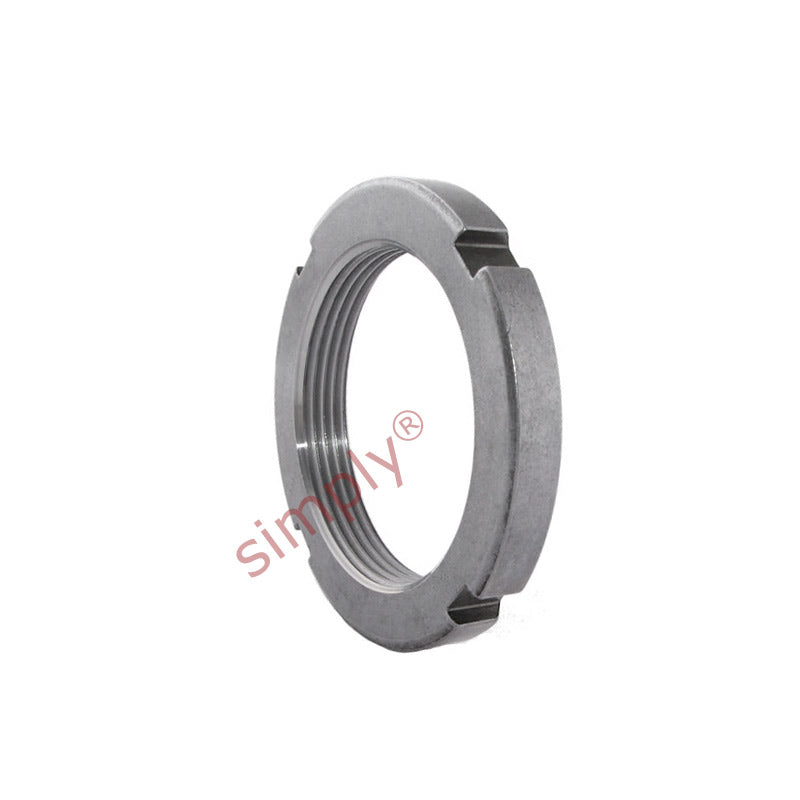

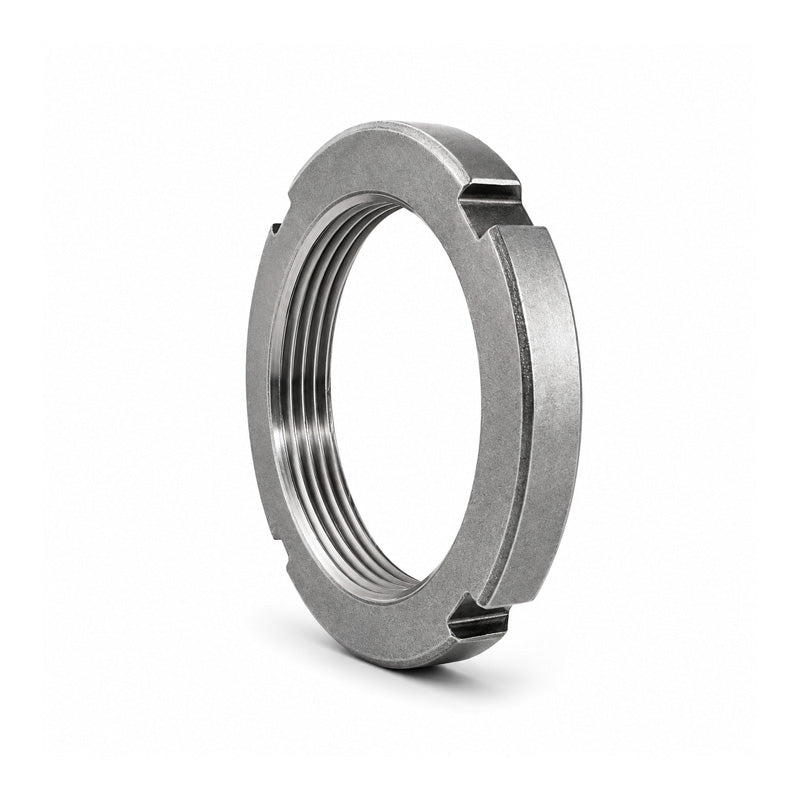

Premier Budget N05 Imperial Lock Nut (Lock Washer Type) 0.969x1.568x0.416 inch
Premier Budget N05 Imperial Lock Nut (Lock Washer Type) 0.969x1.568x0.416 inch
Regular price
$7.89
ex VAT
Regular price
Sale price
$7.89
ex VAT
In stock
Price Break
10+
$7.02
19+
$6.63
29+
$6.55
39+
$6.47
49+
$6.39
74+
$6.31
99+
$5.92
199+
$5.84
249+
$5.76
499+
$5.68
999+
$5.52
Description
Description
Lock Nuts: Supplied in a wide range of sizes and are often referred to as shaft or sleeve nuts, lock nuts or withdrawal nuts depending on their use. They are used to securely locate bearings and other components onto shafts and facilitate the mounting of tapered bore bearings onto shafts with the use of adaptor sleeves or withdrawal sleeves.
Benefits: Efficient, secure, inexpensive, removable and re-usable
- Brand / Quality:
- Premier Budget - Good Quality
- Inside Diameter:
- 24.61mm = 0.969 inch
- Outside Diameter:
- 39.83mm = 1.568 inch
- Width:
- 10.57mm = 0.416 inch
Technical
Technical
| G | 0.969 inch |
|---|---|
| Threads per inch | 32 |
| d<sub>1</sub> | 1.281 inch |
| d<sub>3</sub> max | 1.568 inch |
| B | 0.416 inch |
| b | 0.178 inch |
| h | 0.104 inch |
| Static axial load carrying capacity | 12140 lbf |
| Mass | 0.0544 kg |
| Associated spanner | <a href="advanced_search_result.php?search_in_description=1&keywords=HN5-6+lock+spanner">HN5-6 [Click Here]</a> |
| Associated locking device | <a href="advanced_search_result.php?search_in_description=1&keywords=W5+lock+tab+washer">W5 [Click Here] |
