SKU: NAO20x35x17-EU

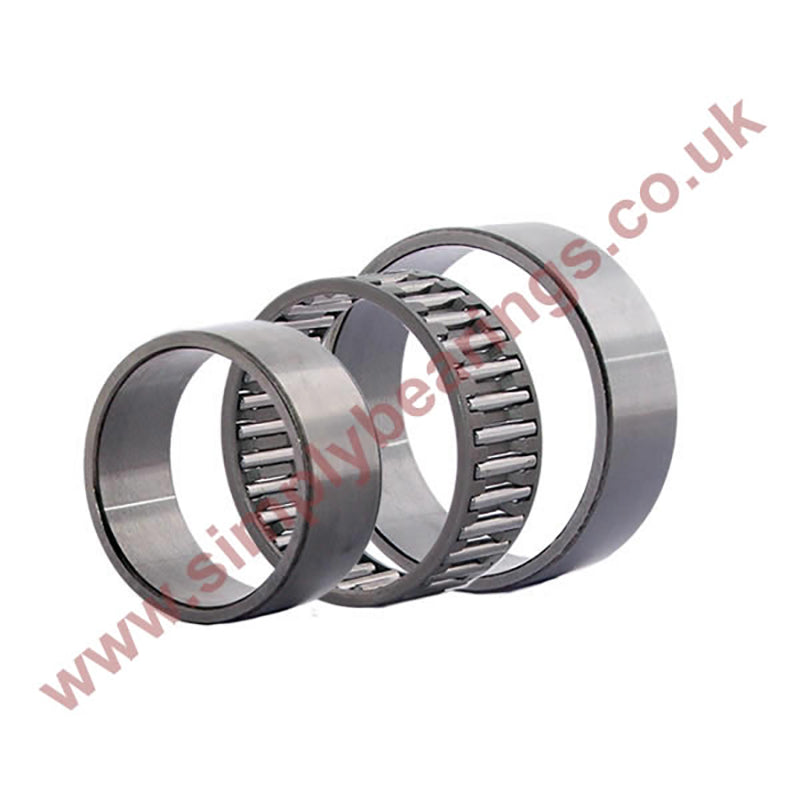

NAO20x35x17 Budget Needle Roller Bearing Without Flanges and With Shaft Sleeve
NAO20x35x17 Budget Needle Roller Bearing Without Flanges and With Shaft Sleeve
Regular price
$9.95
ex VAT
Regular price
Sale price
$9.95
ex VAT
In stock
Price Break
10+
$8.86
19+
$8.36
29+
$8.26
39+
$8.16
49+
$8.06
74+
$7.96
99+
$7.46
199+
$7.36
249+
$7.26
499+
$7.16
999+
$6.97
Description
Description
|
Budget Flange-less Needle Roller: The flange-less design permits separation of the supplied inner ring and the outer bearing to facilitate ease of mounting. Benefits: Separable, ease of mounting. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 35mm
- Width:
- 17mm
Technical
Technical
| d | 20mm |
|---|---|
| D | 35mm |
| B | 17mm |
| Dynamic load C | 14200 N |
| Static load Co | 26500 N |
| Fatigue load limit Pu | 3100 N |
| Speed in grease | 10000 rpm |
| Speed in oil | 16000 rpm |
| E | 30mm |
| F | 25mm |
| r1r2 min | 0.3mm |
| S (axial disp) | 0.5mm |
| da | 29.4mm |
| db | 24.5mm |
| Da | 30.5mm |
| Db | 25.6mm |
| ra max | 0.3mm |
| Weight | 76 g |
