SKU: NAO30x47x16-EU

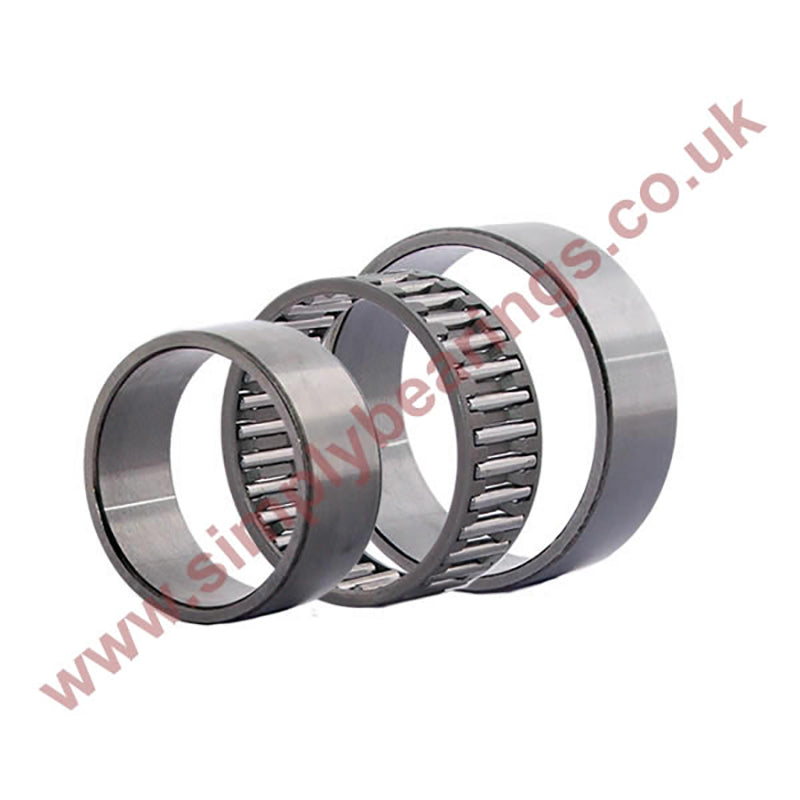

NAO30x47x16 Budget Needle Roller Bearing Without Flanges and With Shaft Sleeve
NAO30x47x16 Budget Needle Roller Bearing Without Flanges and With Shaft Sleeve
Regular price
$14.21
ex VAT
Regular price
Sale price
$14.21
ex VAT
In stock
Price Break
10+
$12.65
19+
$11.94
29+
$11.79
39+
$11.65
49+
$11.51
74+
$11.37
99+
$10.66
199+
$10.52
249+
$10.37
499+
$10.23
999+
$9.95
Description
Description
|
Budget Flange-less Needle Roller: The flange-less design permits separation of the supplied inner ring and the outer bearing to facilitate ease of mounting. Benefits: Separable, ease of mounting. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 47mm
- Width:
- 16mm
Technical
Technical
| d | 30mm |
|---|---|
| D | 47mm |
| B | 16mm |
| Dynamic load C | 23300 N |
| Static load Co | 37500 N |
| Fatigue load limit Pu | 4500 N |
| Speed in grease | 7500 rpm |
| Speed in oil | 11000 rpm |
| E | 42mm |
| F | 35mm |
| r1r2 min | 0.3mm |
| S (axial disp) | 0.8mm |
| da | 41.4mm |
| db | 34.5mm |
| Da | 42.5mm |
| Db | 35.6mm |
| ra max | 0.3mm |
| Weight | 110 g |
