SKU: NAO40x55x17-EU

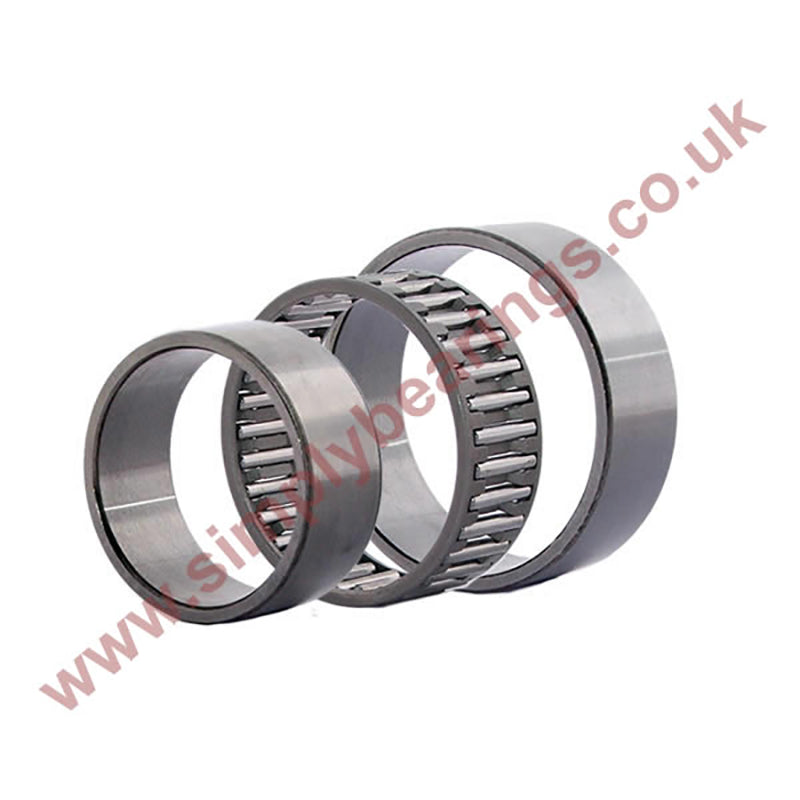

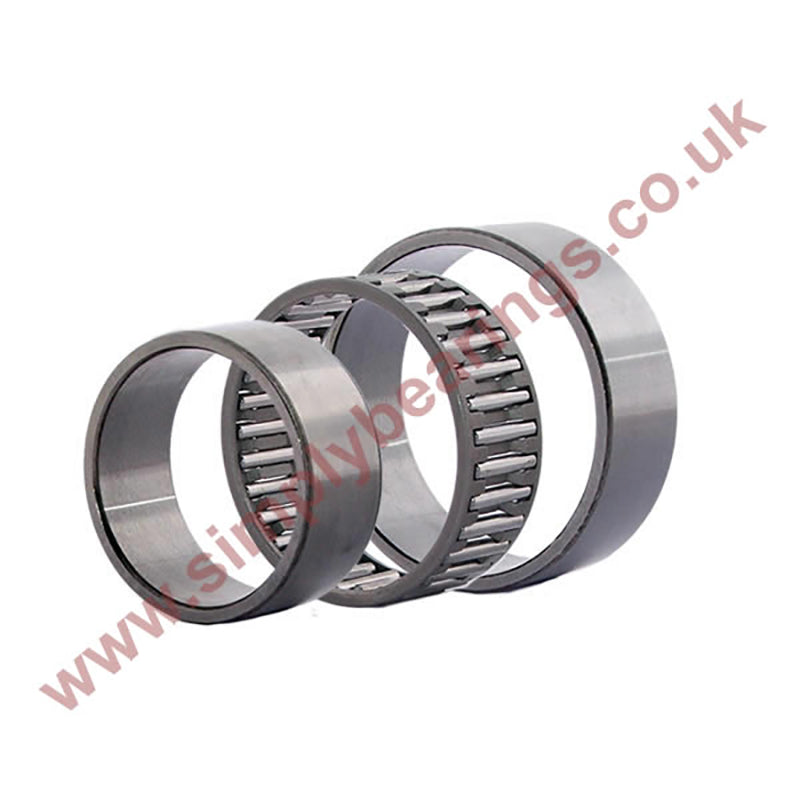

NAO40x55x17 Budget Needle Roller Bearing Without Flanges and With Shaft Sleeve
NAO40x55x17 Budget Needle Roller Bearing Without Flanges and With Shaft Sleeve
Regular price
$14.67
ex VAT
Regular price
Sale price
$14.67
ex VAT
In stock
Price Break
10+
$13.06
19+
$12.32
29+
$12.18
39+
$12.03
49+
$11.88
74+
$11.74
99+
$11.00
199+
$10.86
249+
$10.71
499+
$10.56
999+
$10.27
Description
Description
|
Budget Flange-less Needle Roller: The flange-less design permits separation of the supplied inner ring and the outer bearing to facilitate ease of mounting. Benefits: Separable, ease of mounting. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 55mm
- Width:
- 17mm
Technical
Technical
| d | 40mm |
|---|---|
| D | 55mm |
| B | 17mm |
| Dynamic load C | 21600 N |
| Static load Co | 46500 N |
| Fatigue load limit Pu | 5600 N |
| Speed in grease | 6300 rpm |
| Speed in oil | 9000 rpm |
| E | 50mm |
| F | 45mm |
| r1r2 min | 0.3mm |
| S (axial disp) | 0.8mm |
| da | 49.2mm |
| db | 44.5mm |
| Da | 50.5mm |
| Db | 45.6mm |
| ra max | 0.3mm |
| Weight | 130 g |
