SKU: NAO70x100x30-EU

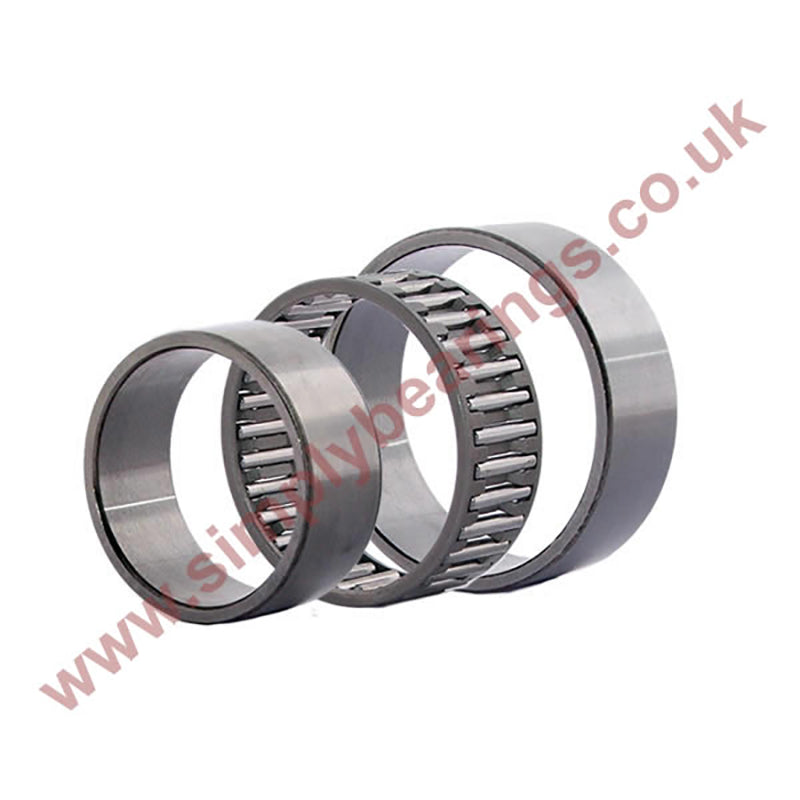

NAO70x100x30 Budget Needle Roller Bearing Without Flanges and With Shaft Sleeve
NAO70x100x30 Budget Needle Roller Bearing Without Flanges and With Shaft Sleeve
Regular price
$97.91
ex VAT
Regular price
Sale price
$97.91
ex VAT
In stock
Price Break
10+
$87.14
19+
$82.24
29+
$81.27
39+
$80.29
49+
$79.31
74+
$78.33
99+
$73.43
199+
$72.45
249+
$71.47
499+
$70.50
999+
$68.54
Description
Description
|
Budget Flange-less Needle Roller: The flange-less design permits separation of the supplied inner ring and the outer bearing to facilitate ease of mounting. Benefits: Separable, ease of mounting. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 100mm
- Width:
- 30mm
Technical
Technical
| d | 70mm |
|---|---|
| D | 100mm |
| B | 30mm |
| Dynamic load C | 68200 N |
| Static load Co | 176000 N |
| Fatigue load limit Pu | 22000 N |
| Speed in grease | 3600 rpm |
| Speed in oil | 5000 rpm |
| E | 88mm |
| F | 80mm |
| r1r2 min | 1mm |
| S (axial disp) | 1mm |
| da | 87.2mm |
| db | 79.3mm |
| Da | 89mm |
| Db | 81mm |
| ra max | 1mm |
| Weight | 850 g |
