SKU: NJ2206ECP/C3-SKF

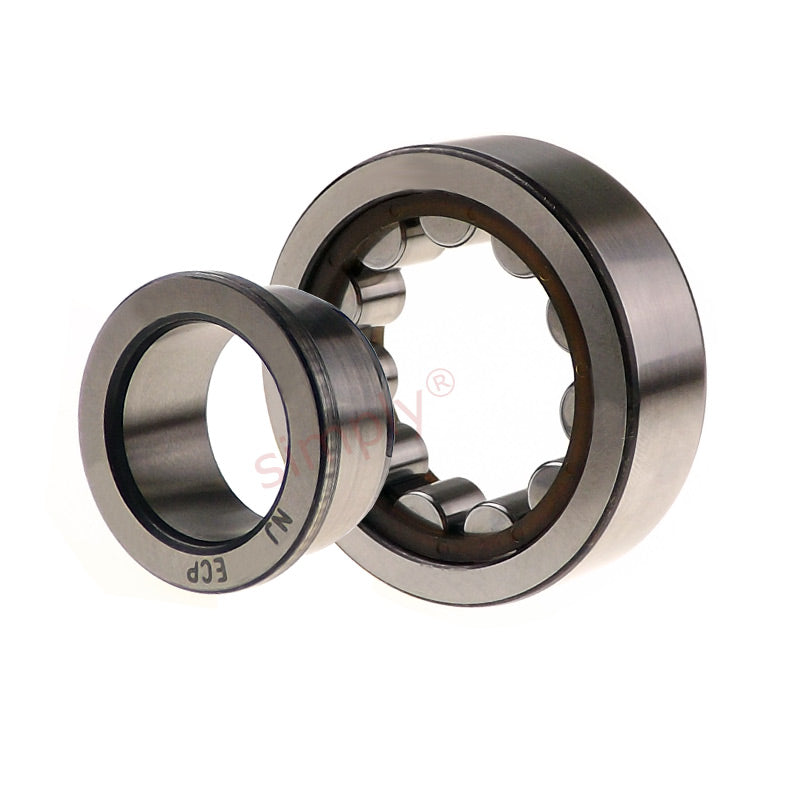

SKF NJ2206ECPC3 Single Row Cylindrical Roller Bearing with Polyamide Cage 30x62x20mm
SKF NJ2206ECPC3 Single Row Cylindrical Roller Bearing with Polyamide Cage 30x62x20mm
Regular price
$64.77
ex VAT
Regular price
Sale price
$64.77
ex VAT
In stock
Price Break
10+
$57.65
19+
$54.41
29+
$53.76
39+
$53.11
49+
$52.46
74+
$51.82
99+
$48.58
199+
$47.93
249+
$47.28
499+
$46.63
999+
$45.34
Description
Description
|
SKF NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 62mm
- Width:
- 20mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 30mm |
|---|---|
| D | 62mm |
| B | 20mm |
| Dynamic load C | 55 kN |
| Static load Co | 49 kN |
| Fatigue load limit Pu | 6.1 kN |
| Reference speed | 13000 rpm |
| Limiting speed | 14000 rpm |
| Weight | 0.26 kg |
| Alt cage | J.ML |
| d1 | 41.2mm |
| D1 | 52.5mm |
| F,E | 37.5mm |
| r1r2 min | 1mm |
| r3r4 min | 0.6mm |
| S | 1.8mm |
| da min | 34mm |
| da max | 36mm |
| db | 43mm |
| Da max | 57mm |
| ra max | 1mm |
| rb max | 0.6mm |
| kr | 0.2 |
