SKU: NJ2218-EU

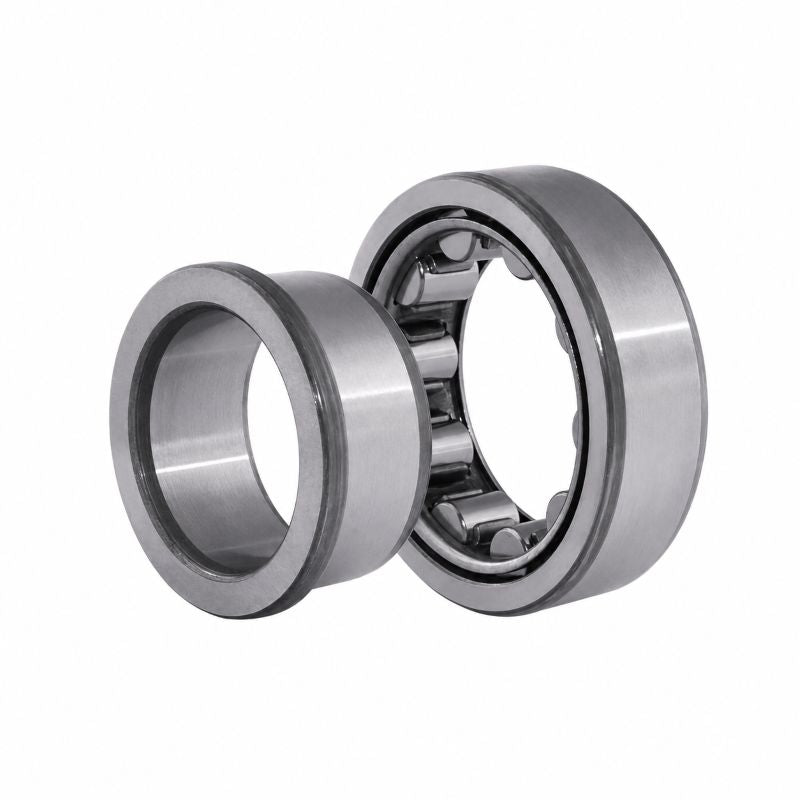

NJ2218 Budget Single Row Cylindrical Roller Bearing 90x160x40mm
NJ2218 Budget Single Row Cylindrical Roller Bearing 90x160x40mm
Regular price
$187.23
ex VAT
Regular price
Sale price
$187.23
ex VAT
In stock
Price Break
10+
$166.63
19+
$157.27
29+
$155.40
39+
$153.53
49+
$151.66
74+
$149.78
99+
$140.42
199+
$138.55
249+
$136.68
499+
$134.81
999+
$131.06
Description
Description
|
NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 90mm
- Outside Diameter:
- 160mm
- Width:
- 40mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 90mm |
|---|---|
| D | 160mm |
| B | 40mm |
| Dynamic load C | 280 kN |
| Static load Co | 315 kN |
| Fatigue load limit Pu | 39 kN |
| Reference speed | 4500 rpm |
| Limiting speed | 5000 rpm |
| Weight | 3.25 kg |
| Cage options | M.ML |
| d1 | 114mm |
| D1 | 140mm |
| F, E | 107mm |
| r1r2 min | 2mm |
| r3r4 min | 2mm |
| s | 2.6mm |
| da min | 101mm |
| da max | 104mm |
| db min | 117mm |
| Da max | 149mm |
| ra max | 2mm |
| rb max | 2mm |
| kr | 0.2 |
| Angle ring | HJ2218EC |
| Angle ring weight | 0.33kg |
| B1 | 9mm |
| B2 | 15mm |
