SKU: NJ2220-EU

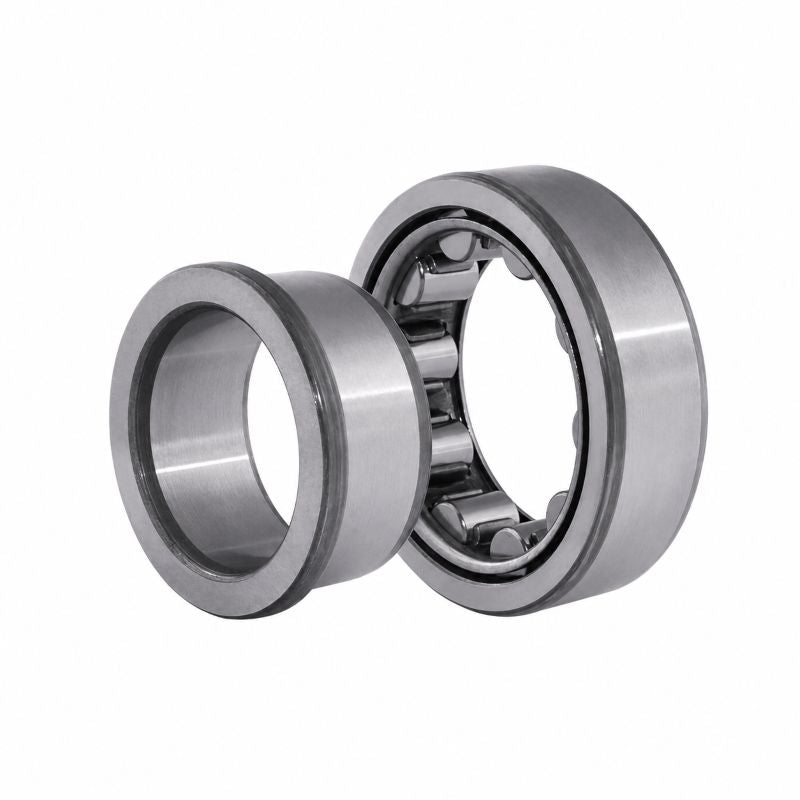

NJ2220 Budget Single Row Cylindrical Roller Bearing 100x180x46mm
NJ2220 Budget Single Row Cylindrical Roller Bearing 100x180x46mm
Regular price
$266.52
ex VAT
Regular price
Sale price
$266.52
ex VAT
In stock
Price Break
10+
$237.20
19+
$223.88
29+
$221.21
39+
$218.55
49+
$215.88
74+
$213.22
99+
$199.89
199+
$197.22
249+
$194.56
499+
$191.89
999+
$186.56
Description
Description
|
NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 100mm
- Outside Diameter:
- 180mm
- Width:
- 46mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 100mm |
|---|---|
| D | 180mm |
| B | 46mm |
| Dynamic load C | 380 kN |
| Static load Co | 450 kN |
| Fatigue load limit Pu | 54 kN |
| Reference speed | 4000 rpm |
| Limiting speed | 4500 rpm |
| Weight | 4.8 kg |
| Cage options | J.ML |
| d1 | 127mm |
| D1 | 157mm |
| F, E | 119mm |
| r1r2 min | 2.1mm |
| r3r4 min | 2.1mm |
| s | 2.5mm |
| da min | 112mm |
| da max | 116mm |
| db min | 130mm |
| Da max | 168mm |
| ra max | 2mm |
| rb max | 2mm |
| kr | 0.2 |
| Angle ring | HJ2220EC |
| Angle ring weight | 0.43kg |
| B1 | 10mm |
| B2 | 16mm |
