SKU: NJ2230ECM/C4VA824-SKF

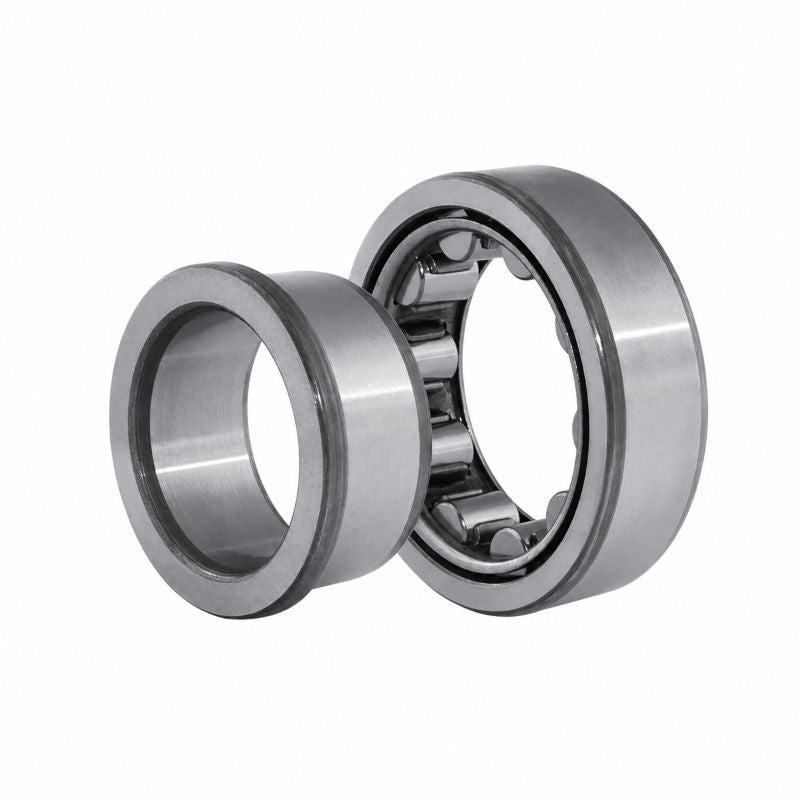

SKF NJ2230ECMC4VA824 Single Row Cylindrical Roller Bearing with Brass Cage 150x270x73mm
SKF NJ2230ECMC4VA824 Single Row Cylindrical Roller Bearing with Brass Cage 150x270x73mm
Regular price
$1,947.15
ex VAT
Regular price
Sale price
$1,947.15
ex VAT
In stock
Price Break
10+
$1,732.96
19+
$1,635.61
29+
$1,616.13
39+
$1,596.66
49+
$1,577.19
74+
$1,557.72
99+
$1,460.36
199+
$1,440.89
249+
$1,421.42
499+
$1,401.95
999+
$1,363.01
Description
Description
|
SKF NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 150mm
- Outside Diameter:
- 270mm
- Width:
- 73mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 150mm |
|---|---|
| D | 270mm |
| B | 73mm |
| Dynamic load C | 735 kN |
| Static load Co | 930 kN |
| Fatigue load limit Pu | 100 kN |
| Reference speed | 2600 rpm |
| Limiting speed | 2800 rpm |
| Weight | 19 kg |
| d1 | 194mm |
| D1 | 234mm |
| F,E | 182mm |
| r1r2 min | 3mm |
| r3r4 min | 3mm |
| S | 4.9mm |
| da min | 164mm |
| da max | 179mm |
| db | 197mm |
| Da max | 256mm |
| ra max | 2.5mm |
| rb max | 2.5mm |
| kr | 0.2 |
| Angle ring | HJ2230EC |
| Angle Ring Weight | 1.35 kg |
| B1 | 12mm |
| B2 | 24.5mm |
