SKU: NJ2304ECP/C3-SKF

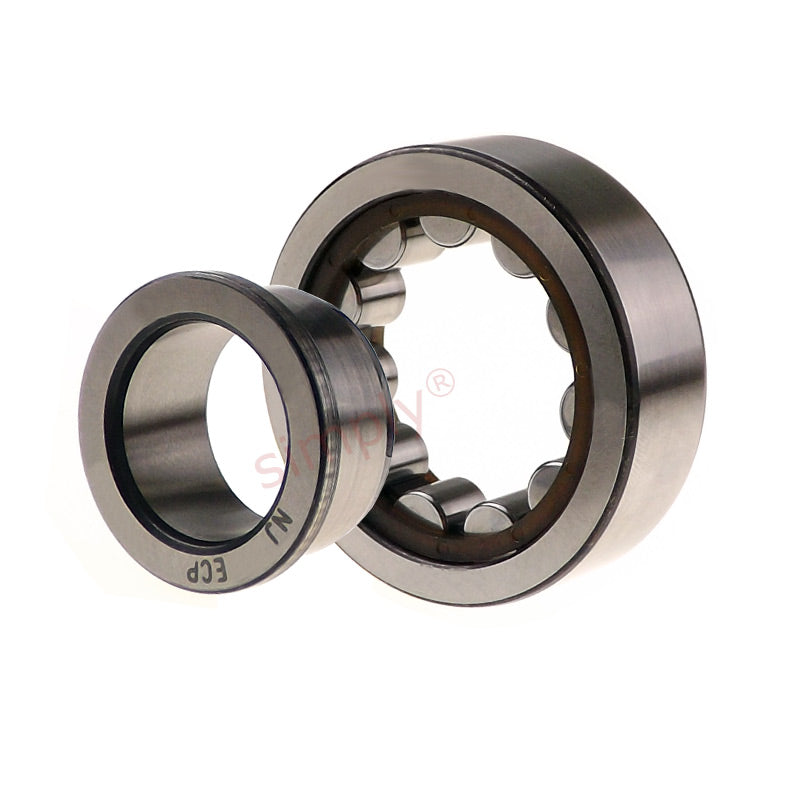

SKF NJ2304ECPC3 Single Row Cylindrical Roller Bearing with Polyamide Cage 20x52x21mm
SKF NJ2304ECPC3 Single Row Cylindrical Roller Bearing with Polyamide Cage 20x52x21mm
Regular price
$72.89
ex VAT
Regular price
Sale price
$72.89
ex VAT
In stock
Price Break
10+
$64.87
19+
$61.23
29+
$60.50
39+
$59.77
49+
$59.04
74+
$58.31
99+
$54.67
199+
$53.94
249+
$53.21
499+
$52.48
999+
$51.02
Description
Description
|
SKF NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 52mm
- Width:
- 21mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 20mm |
|---|---|
| D | 52mm |
| B | 21mm |
| Dynamic load C | 47.5 kN |
| Static load Co | 38 kN |
| Fatigue load limit Pu | 4.8 kN |
| Reference speed | 14000 rpm |
| Limiting speed | 18000 rpm |
| Weight | 0.22 kg |
| d1 | 31.2mm |
| D1 | 42.4mm |
| F,E | 27.5mm |
| r1r2 min | 1.1mm |
| r3r4 min | 0.6mm |
| S | 1.9mm |
| da min | 26mm |
| da max | 26mm |
| db | 33mm |
| Da max | 45mm |
| ra max | 1mm |
| rb max | 0.6mm |
| kr | 0.29 |
