SKU: NJ2306-EU

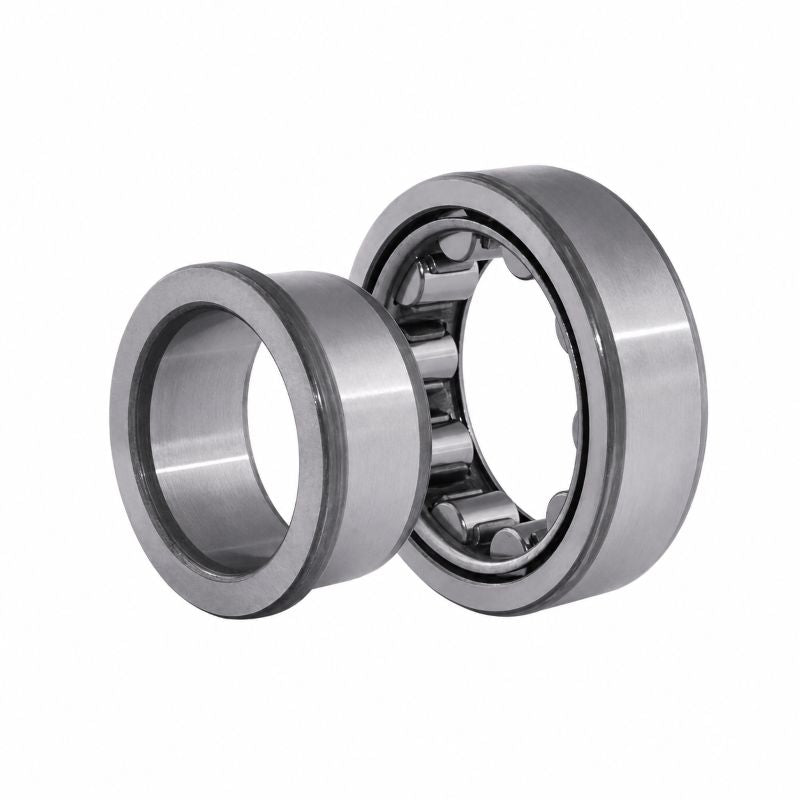

NJ2306 Budget Single Row Cylindrical Roller Bearing 30x72x27mm
NJ2306 Budget Single Row Cylindrical Roller Bearing 30x72x27mm
Regular price
$25.86
ex VAT
Regular price
Sale price
$25.86
ex VAT
In stock
Price Break
10+
$23.02
19+
$21.72
29+
$21.46
39+
$21.21
49+
$20.95
74+
$20.69
99+
$19.40
199+
$19.14
249+
$18.88
499+
$18.62
999+
$18.10
Description
Description
|
NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 72mm
- Width:
- 27mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 30mm |
|---|---|
| D | 72mm |
| B | 27mm |
| Dynamic load C | 83 kN |
| Static load Co | 75 kN |
| Fatigue load limit Pu | 9.65 kN |
| Reference speed | 11000 rpm |
| Limiting speed | 12000 rpm |
| Weight | 0.54 kg |
| Cage options | ML |
| d1 | 45mm |
| D1 | 58.9mm |
| F, E | 40.5mm |
| r1r2 min | 1.1mm |
| r3r4 min | 1.1mm |
| s | 2.4mm |
| da min | 37mm |
| da max | 39mm |
| db min | 47mm |
| Da max | 65mm |
| ra max | 1mm |
| rb max | 1mm |
| kr | 0.25 |
